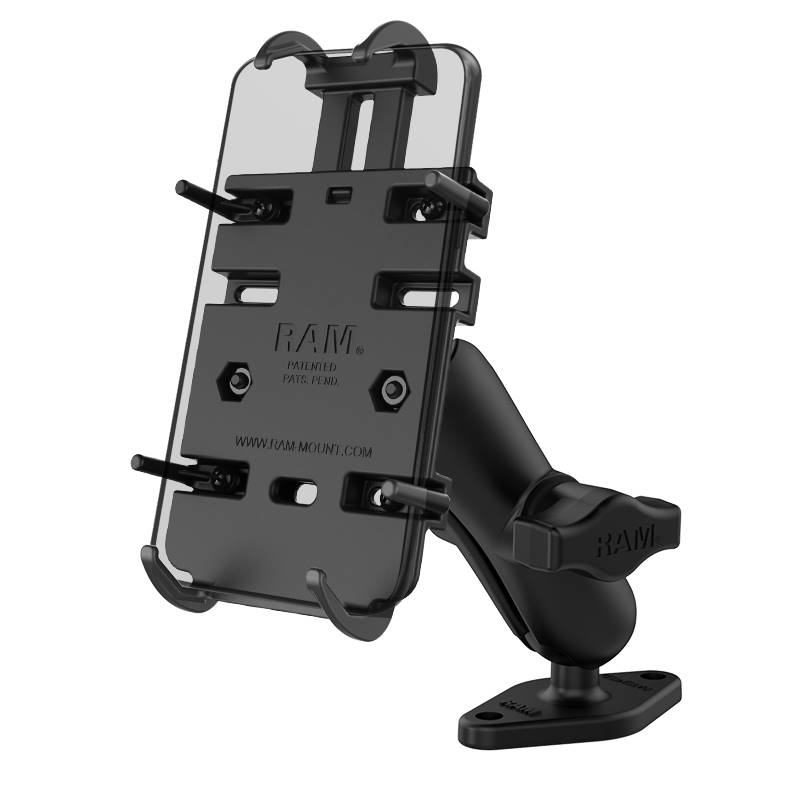

RAM Quick-Grip Phone Mount with Diamond

The RAM Quick-Grip Flat Surface Mount consists of a 2-hole diamond drill-down base, a double socket
arm and spring loaded cradle for supporting most phones. Integrating the industry standard AMPS hole
pattern, this mount can connect to any flat surface or to the side of the RAM Tough-Tray. The
double ball and socket design provides adjustment points at both ends of the socket arm with the
turn of a single knob, allowing you to set your phone to the optimal viewing position.

HARDWARE INCLUDED
Asssembly Hardware

HOLDER DIMENSIONS
Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.63 lbs.
