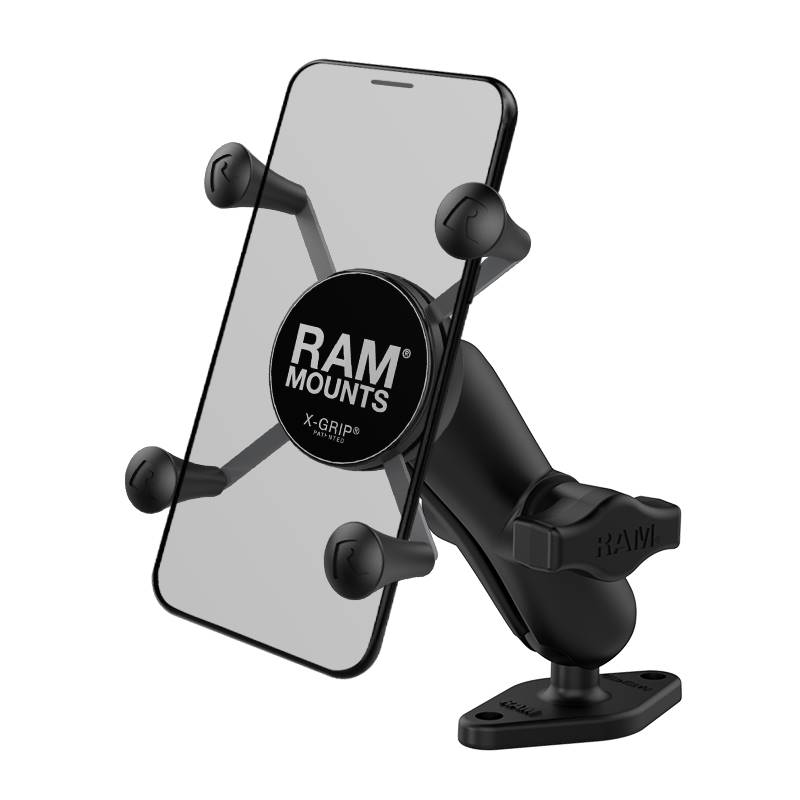

The RAM-B-102-UN7U consists of a diamond base, double socket arm and universal spring loaded X-Grip
cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket
system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob,
allows you can move the X-Grip mount to your optimum viewing position. The 2.43" x 1.31" diamond
base has two holes 1.912" from center to center and matches the industry standard AMPS hole pattern.
The included X-Grip cradle has a clean and clever four leg design that sports great holding power
without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and
contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the
modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x .75" Screws
(2) #8-32 Nylock Nuts
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
PLATE SIZE
2.43" x 1.31"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
FEATURES:
Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your
phone; includes optional device tether for peace of mind during rugged use
Diamond ball base featuring universal AMPS hole pattern included; ball and socket technology allows
for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
WEIGHT
0.59 lbs.
cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket
system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob,
allows you can move the X-Grip mount to your optimum viewing position. The 2.43" x 1.31" diamond
base has two holes 1.912" from center to center and matches the industry standard AMPS hole pattern.
The included X-Grip cradle has a clean and clever four leg design that sports great holding power
without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and
contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the
modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x .75" Screws
(2) #8-32 Nylock Nuts
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
PLATE SIZE
2.43" x 1.31"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
FEATURES:
Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your
phone; includes optional device tether for peace of mind during rugged use
Diamond ball base featuring universal AMPS hole pattern included; ball and socket technology allows
for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
WEIGHT
0.59 lbs.
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components and High Strength Composite
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
- Weight:0.59 lbs.
