RAM Double Ball Diamond Plate Mount - B Si

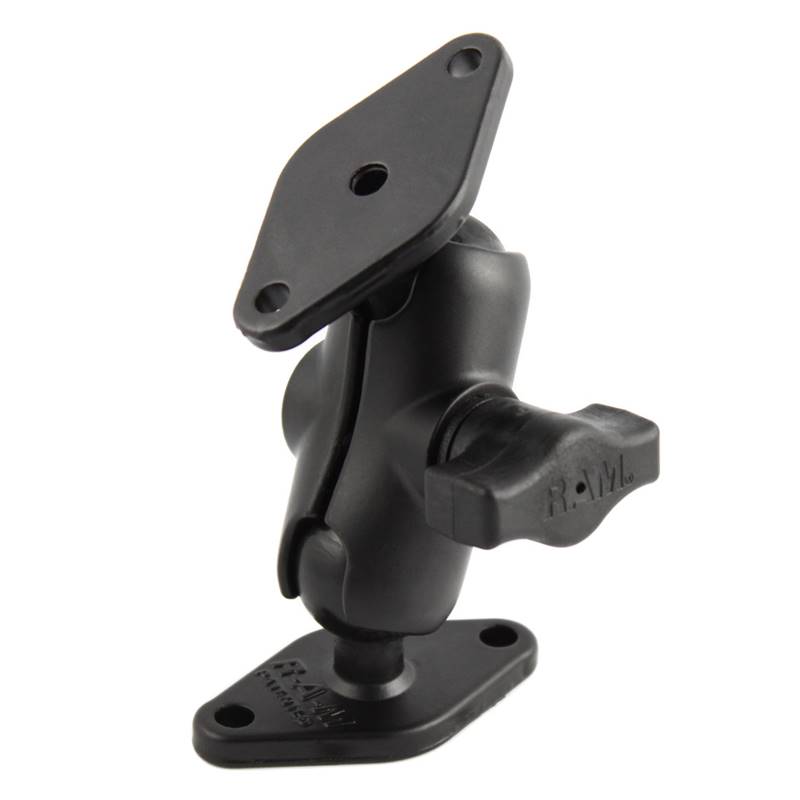

The RAM-B-102U-A consists of a short double socket arm and two diamond bases. The diamond bases
measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at
both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM
cradles, as well as third party cradles including mounts with the industry standard AMPS hole
pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both socket ends of the arm.

PRODUCT DIMENSIONS
Overall Height: 3.75"

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Drill-down mounting solution; choose either diamond plate featuring the AMPS hole pattern for
attachment to compatible device holders

Includes two diamond ball bases and B size short length double socket arm; ball and socket
technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.35 lbs.
