RAM Double Ball Diamond Plate Mount - B Si
RAM Double Ball Diamond Plate Mount - B Si
Regular price
$40.49 USD
Regular price
Sale price
$40.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442916298
Mfg Part #:
RAM-B-102U-C
Availability:
In Stock
Part Number:
RAM-B-102U-C
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

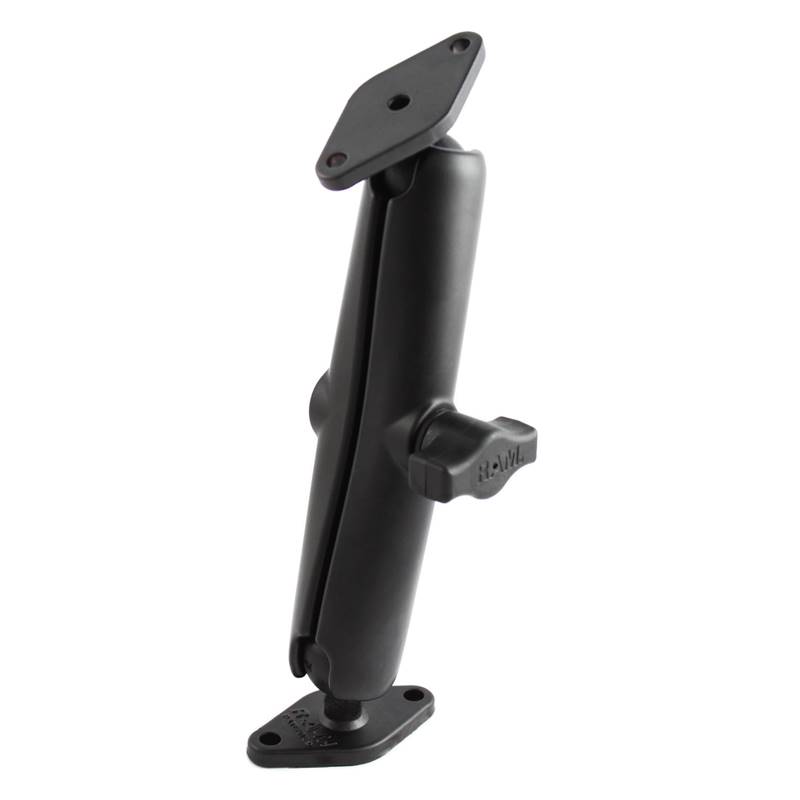

The RAM-B-102U-C consists of a long double socket arm and two diamond bases. The diamond bases
measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at
both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM
cradles, as well as third party cradles including mounts with the industry standard AMPS hole
pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both socket ends of the arm.
PRODUCT DIMENSIONS
Overall Height: 7.3125"
SOCKET-TO-SOCKET LENGTH
5.31"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.67 lbs.
measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at
both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM
cradles, as well as third party cradles including mounts with the industry standard AMPS hole
pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both socket ends of the arm.
PRODUCT DIMENSIONS
Overall Height: 7.3125"
SOCKET-TO-SOCKET LENGTH
5.31"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.67 lbs.
Dimensions:
- Overall Height: 7.3125"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:Part number reflects product packaged in clear clam shell for store shelf display.
- Weight:0.67 lbs.
