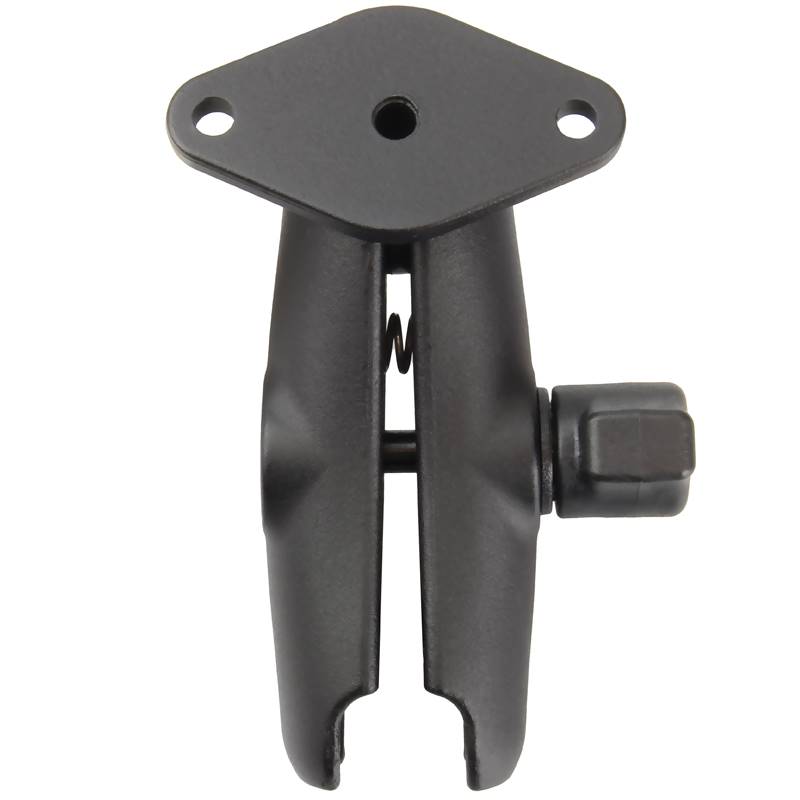

RAM Double Socket Arm with Diamond Plate

The RAM-103-238U consists of a diamond base and standard length double socket arm that will accept
1" ball bases. The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from center to
center, positioned at both ends of the diamond base. The hole pattern found on the diamond base will
connect to many RAM cradles, as well as third party cradles including mounts with the industry
standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket
system with adjustment points at both ends of the socket arm; this with a twist of the arm knob
allows for you to maneuver the mount to your optimum viewing position.

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Diamond plate features industry-standard AMPS hole pattern; connects to a variety of RAM device
holders

Includes B size medium length RAM double socket arm; ball and socket technology allows for near-
infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.38 lbs.
