RAM Double Socket Arm with Diamond Pla

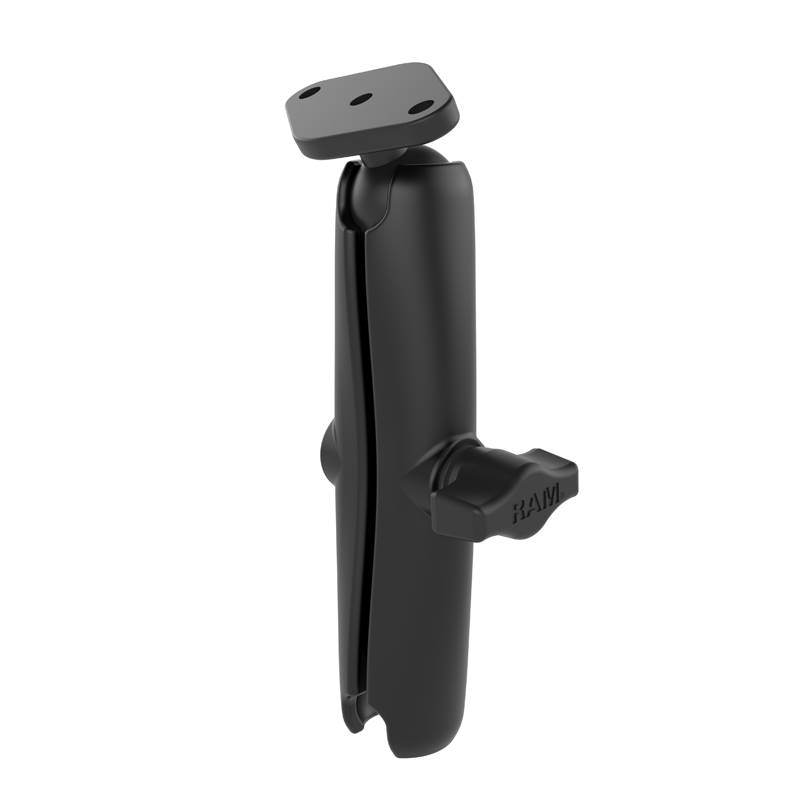

The RAM-B-103-C-238U consists of a diamond base and LONG double socket arm that will accept 1" ball
bases. The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from center to center,
positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect
to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS
hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you
to maneuver the mount to your optimum viewing position.

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.6 lbs.
