RAM-B-103U_RAM Double Socket Arm with Round Plate - B S

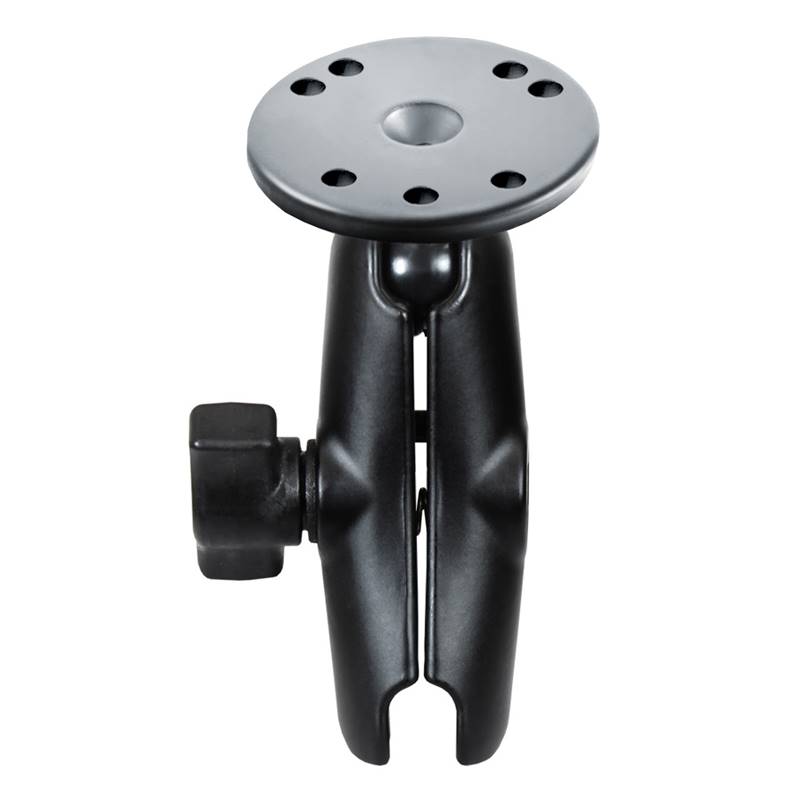

The RAM-B-103U consists of a 2.5" round base and double socket arm that will accept 1" ball bases.
The round base contains pre-drilled holes, including the universal AMPS hole pattern. Designed into
the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both
ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to
your optimum viewing position.

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Round plate features industry-standard AMPS hole pattern; connects to a variety of RAM device
holders

Includes B size medium length RAM double socket arm; ball and socket technology allows for near-
infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.43 lbs.
