RAM Fishfinder Diamond Plate Mount for H
RAM Fishfinder Diamond Plate Mount for H
Regular price
$45.49 USD
Regular price
Sale price
$45.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442905124
Mfg Part #:
RAM-B-107U-238
Availability:
In Stock
Part Number:
RAM-B-107U-238
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

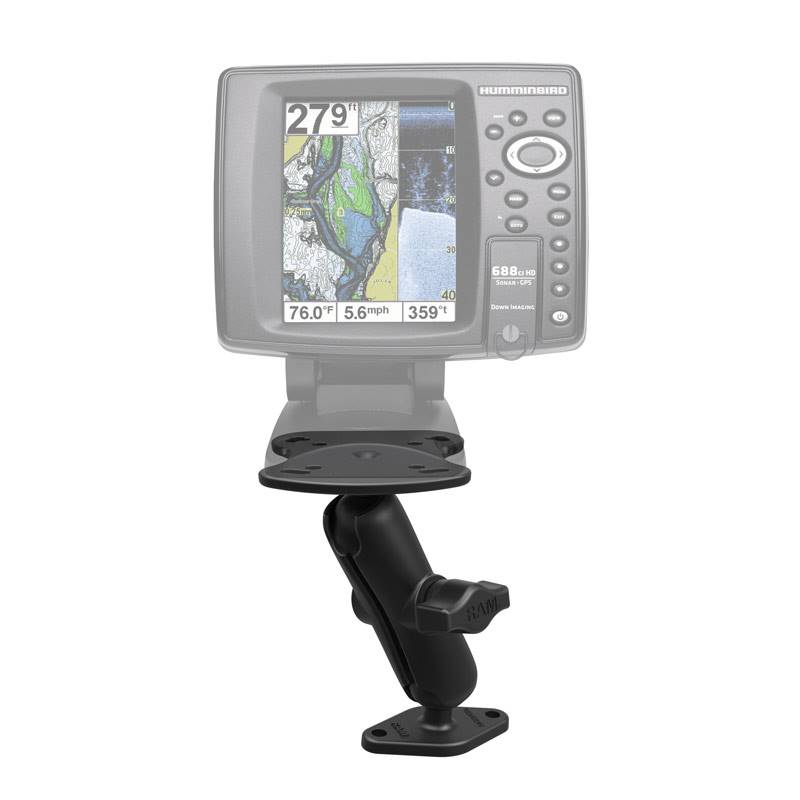

The RAM-B-107U-238 consists of a double socket arm, diamond base and connecting Humminbird/Apelco
marine base. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both socket ends of the arm. The diamond base contains two holes 1.912" from
center to center, positioned at both ends of the base. Rubber ball and socket technology allows for
almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
See Drawing
PLATE SIZE
Fishfinder Plate: 4.25" x 3.81"
Round Plate: 2.43" x 1.31"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.68 lbs.
marine base. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both socket ends of the arm. The diamond base contains two holes 1.912" from
center to center, positioned at both ends of the base. Rubber ball and socket technology allows for
almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
2-Hole AMPS: 1.912"
See Drawing
PLATE SIZE
Fishfinder Plate: 4.25" x 3.81"
Round Plate: 2.43" x 1.31"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.68 lbs.
Dimensions:
- Overall Height: 5"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Weight Capacity:To 2.25kg weight (approx 5 lbs)
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.68 lbs.
