RAM-B-107U_RAM Fishfinder Mount for Humminbird Devices
RAM-B-107U_RAM Fishfinder Mount for Humminbird Devices
Regular price
$46.99 USD
Regular price
Sale price
$46.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442001963
Mfg Part #:
RAM-B-107U
Availability:
In Stock
Part Number:
RAM-B-107U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

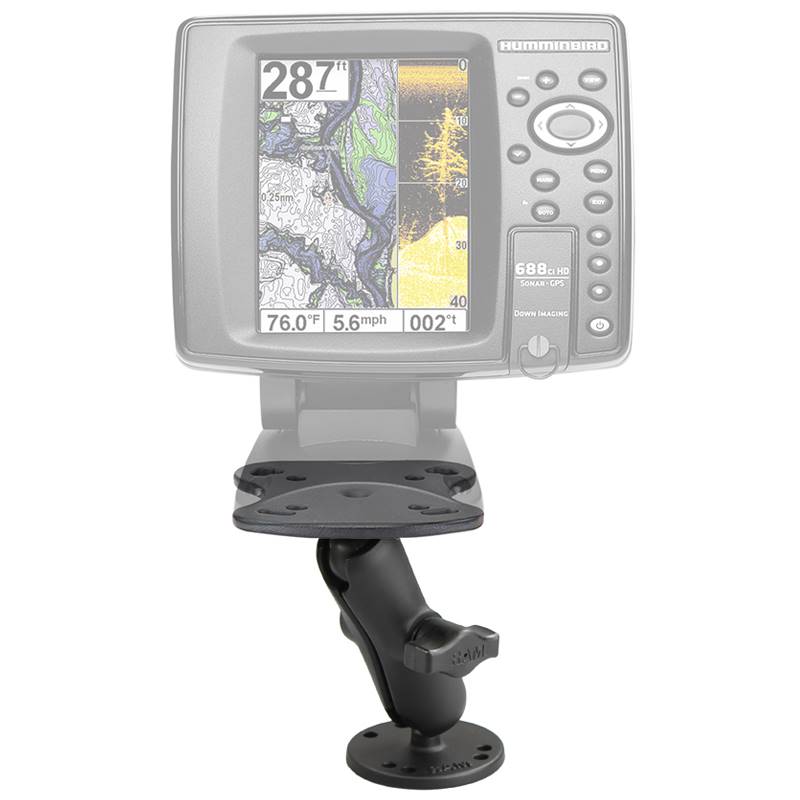

The RAM-B-107U consists of a 2.5" diameter round base with the universal AMPs hole pattern, double
socket arm and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. The
RAM-B-107U is a "LIGHT USE" mount, designed to hold smaller marine electronic devices.
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Fishfinder Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.74 lbs.
socket arm and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. The
RAM-B-107U is a "LIGHT USE" mount, designed to hold smaller marine electronic devices.
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Fishfinder Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.74 lbs.
Dimensions:
- Overall Height: 5"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Weight Capacity:To 2.25kg weight (approx 5 lbs)
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.74 lbs.
