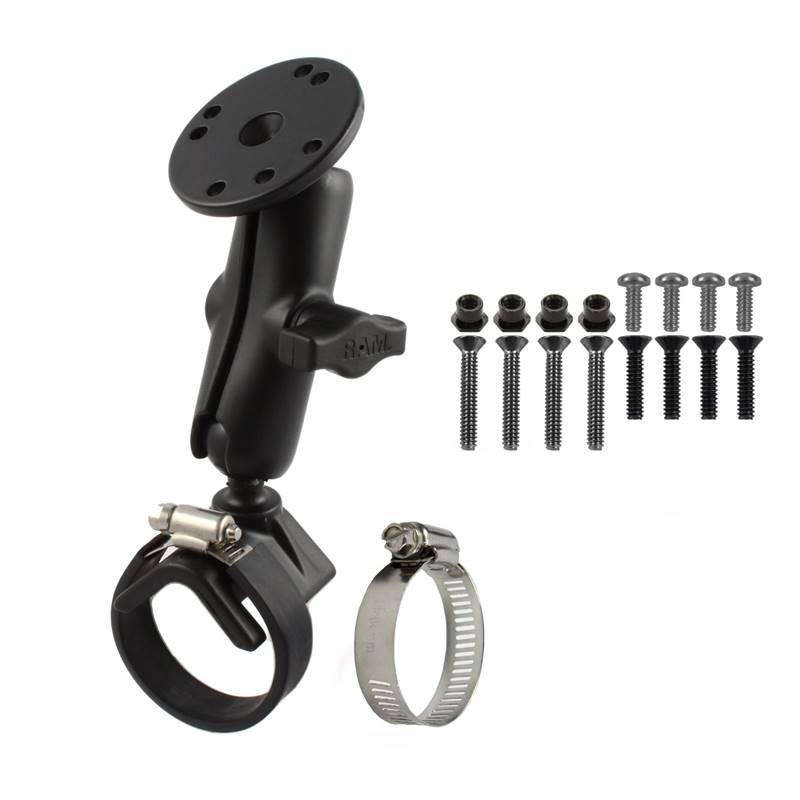

RAM Strap Hose Clamp Mount with Hardware f

The RAM-108-G1 consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter Plate
and connection hardware. This mount is designed to be a universal mounting solution for both RAM and
non-RAM designed products. The hole pattern found on the 2.5" Plate will connect to a large variety
of third party cradles and mounts. The strap mount base fits a rail diameter from 1.0" to a maximum
of 1.9". The 1" rubber ball is at a right angle to the mount base placing the ball at a right angle
to the rail. Included with the base is one 6.0" and one 8.0" long metal strap is included with this
base along with a 5.5" long (approximate) strip of rubber to avoid any scratching or marking of your
rail.

HARDWARE INCLUDED
(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

CLAMP RANGE
1" - 2.1" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Retail Bag

WEIGHT
0.7 lbs.
