RAM Tab-Tite Mount with Strap Hose Clam

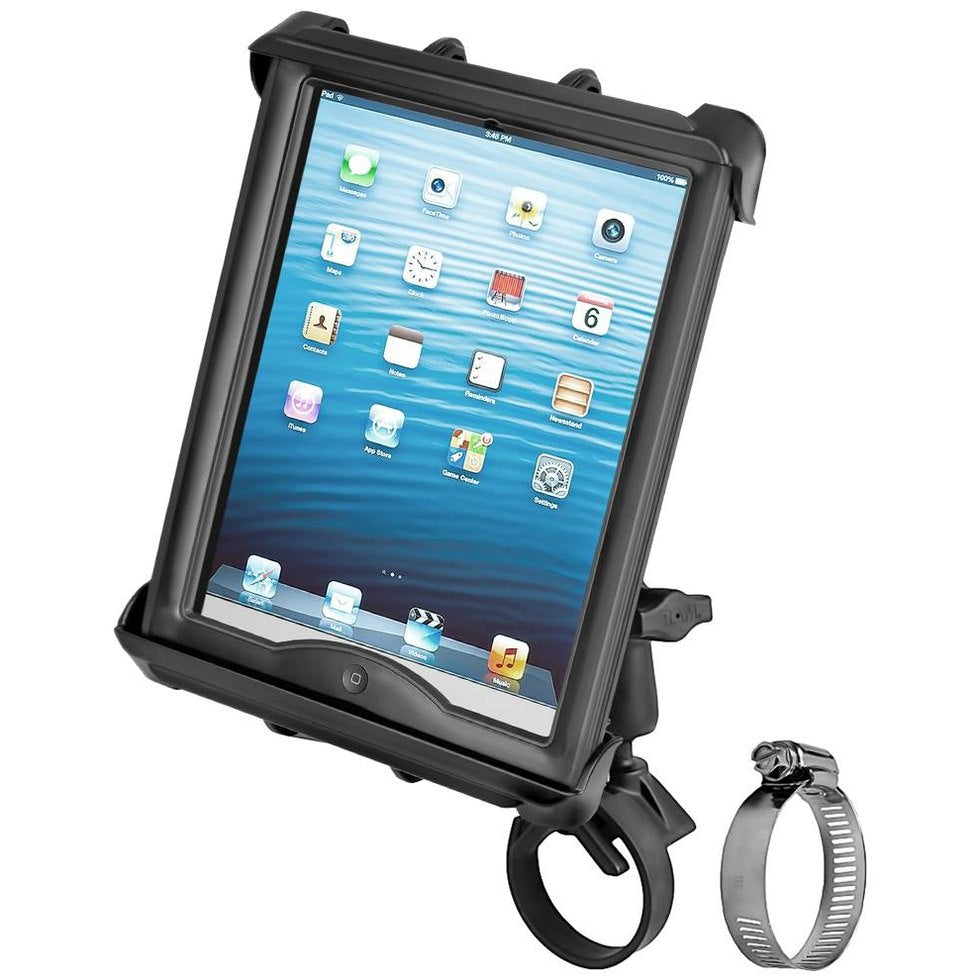

The RAM-B-108-TAB8U consists of a V-Shape base, metal clamp straps, double socket arm, round base
adapter and Tab-Tite universal clamping cradle. The V-Shape base accommodates rails from 1.0" to a
maximum of 2.1" in diameter. The RAM-B-108-TAB8 is an alternative mounting base for Beechcraft
airplanes with a “throw over yoke”. The mount is designed with a RAM 1" diameter patented rubber
ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite
cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go.
Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access
to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The
Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is
important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

HOLDER DIMENSIONS
Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

CLAMP RANGE
1" - 2.1" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.3 lbs.
