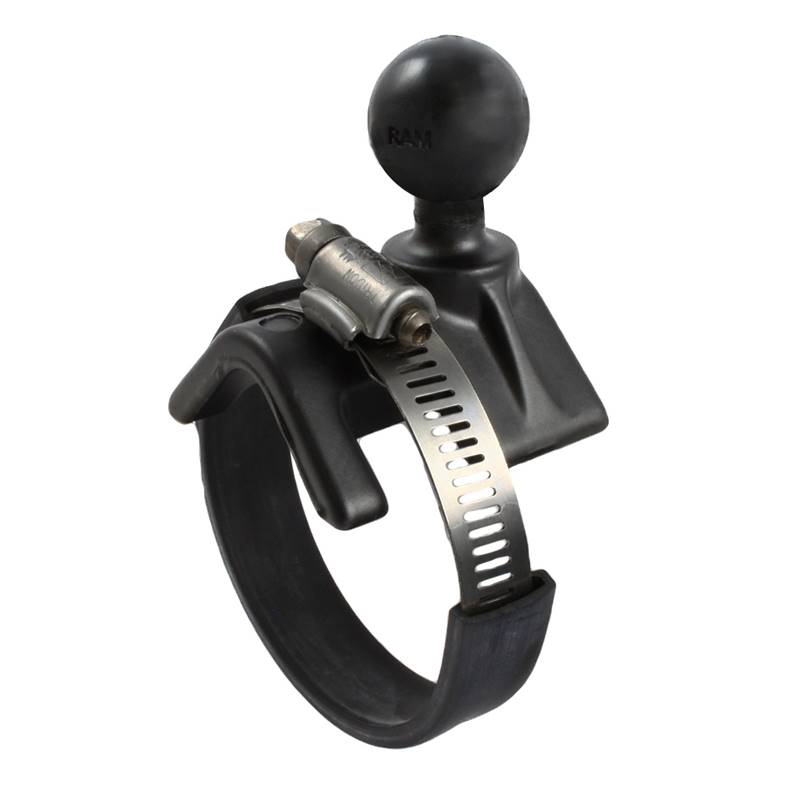

RAM Large Strap Hose Clamp Base for
RAM Large Strap Hose Clamp Base for
Regular price
$20.99 USD
Regular price
Sale price
$20.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442921575
Mfg Part #:
RAM-B-108B-STRAP40U
Availability:
In Stock
Part Number:
RAM-B-108B-STRAP40U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components
The RAM-B-108B-STRAP40U accommodates rails from 2" to a maximum of 3" in diameter. To mount the
RAM-B-108B-STRAP40U base, place the saddle shaped plate on the rail then wrap the metal clamp strap
around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the
strap has a firm hold on the rail. The RAM-B-108B-STRAP40U is an alternative mounting base for
aircraft such as the Bonanza or Beech with a “throw over yoke”.
HARDWARE INCLUDED
(1) #40 Worm Drive Strap Clamp
(1) 6" Rubber Strip
CLAMP RANGE
2" - 3" diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.28 lbs.
RAM-B-108B-STRAP40U base, place the saddle shaped plate on the rail then wrap the metal clamp strap
around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the
strap has a firm hold on the rail. The RAM-B-108B-STRAP40U is an alternative mounting base for
aircraft such as the Bonanza or Beech with a “throw over yoke”.
HARDWARE INCLUDED
(1) #40 Worm Drive Strap Clamp
(1) 6" Rubber Strip
CLAMP RANGE
2" - 3" diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.28 lbs.
Clamp Dimensions:
- 2" to 3"
Included in Kit:
- (1) QTY metal strap
- (1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.28 lbs.
RAM-STRAP40
