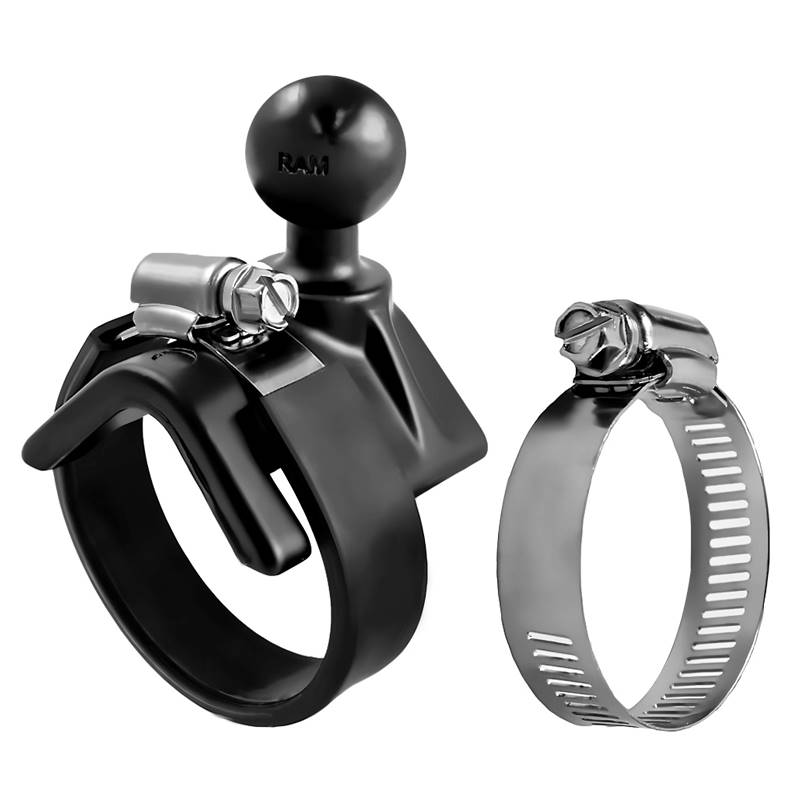

RAM Strap Hose Clamp Ball Base 1" - 2.1"

The RAM-B-108BU consists of a B size 1" rubber ball connected at a right angle to a V-shaped base,
and accommodates rails from 1" to 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle-
shaped plate on the rail and then wrap the metal clamp strap around the rail and plate. Tighten the
knob on the metal strap with a screwdriver until it has a firm hold on the rail. The RAM-B-108BU is
an alternative mounting base for Beechcraft airplanes with a “throw over yoke."

HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

CLAMP RANGE
1" - 2.1" diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Saddle-shaped clamp mount ideal for rails ranging from 1" to 2.1" in diameter

Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball
and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.28 lbs.
