RAM Double Ball Strap Hose Clamp Mount wit
RAM Double Ball Strap Hose Clamp Mount wit
Regular price
$44.49 USD
Regular price
Sale price
$44.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442925115
Mfg Part #:
RAM-B-108U-A
Availability:
In Stock
Part Number:
RAM-B-108U-A
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

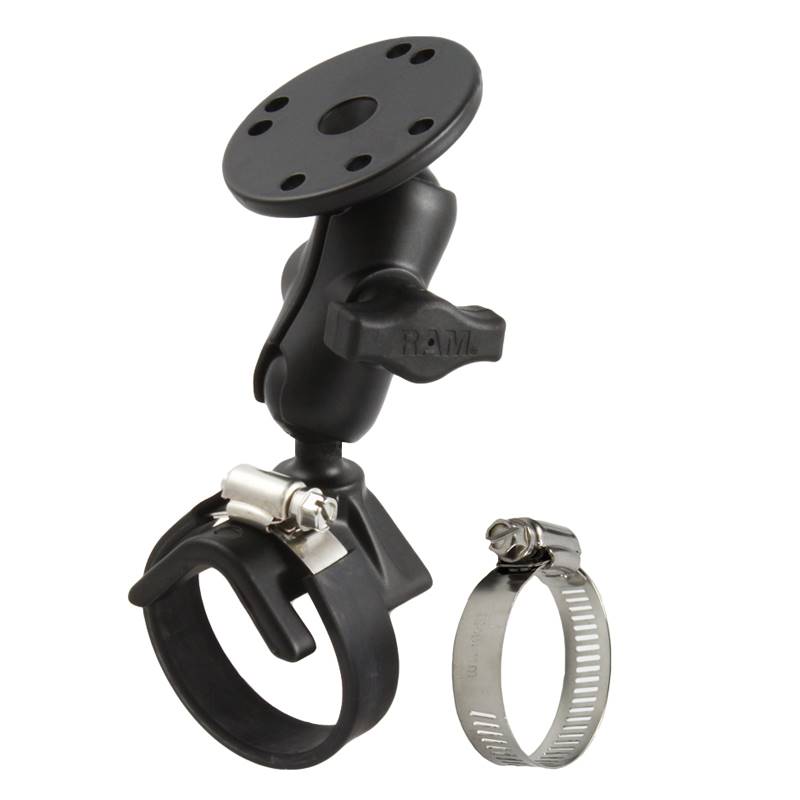

The RAM-B-108U-A consists of a 1" diameter rubber ball connected at a right angle to a v-shaped
base, SHORT length double socket arm and 2.5" base that contains the universal AMPs hole pattern.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles.
HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
CLAMP RANGE
1" - 2.1" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.3 lbs.
base, SHORT length double socket arm and 2.5" base that contains the universal AMPs hole pattern.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles.
HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
CLAMP RANGE
1" - 2.1" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.3 lbs.
Rail Dimensions:
- 1.0" to a maximum of 2.1" in diameter
Included in Kit:
- (1) QTY 6" long metal strap
- (1) QTY 8" long metal strap
- (1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:2.3 lbs.
