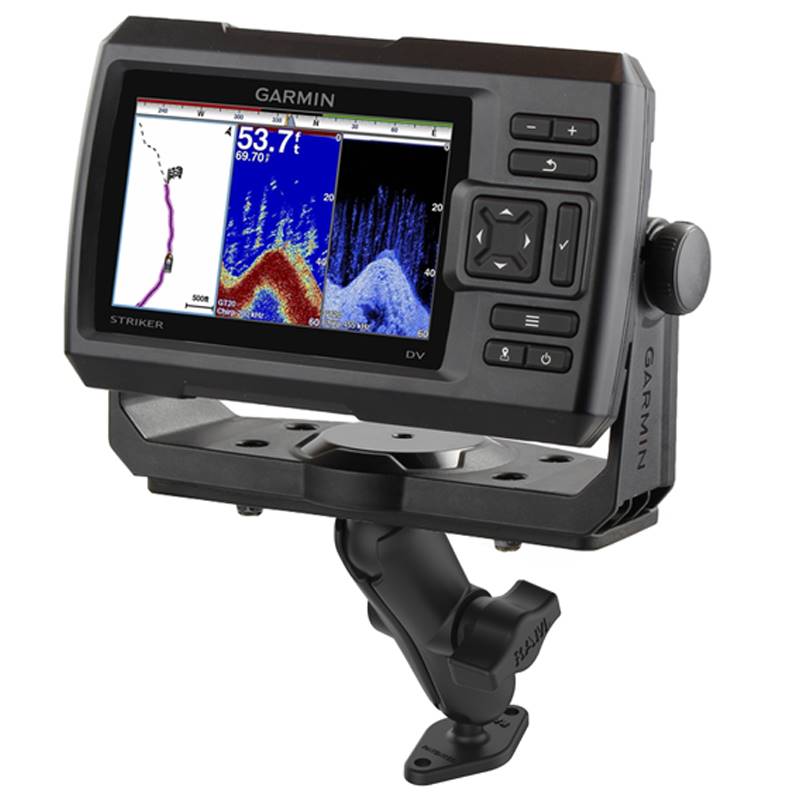

RAM-B-111-238U_RAM Universal Marine Electronic Mount wi

The RAM-B-111-238U consists of a double socket arm, 2.43" x 1.31" diamond base and 6.25" x 2"
rectangle base. The diamond base contains two holes 1.912" from center to center, positioned at both
ends of the base. The rectangle base contains different combinations of pre-drilled holes which will
match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal
Brackets and more.

PRODUCT DIMENSIONS
Overall Height: 5"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"
See Drawing

PLATE SIZE
Top Plate: 6.25" x 2.5"
Bottom Plate: 2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.66 lbs.
