RAM-B-111U-C_RAM Universal Marine Electronic Mount - B

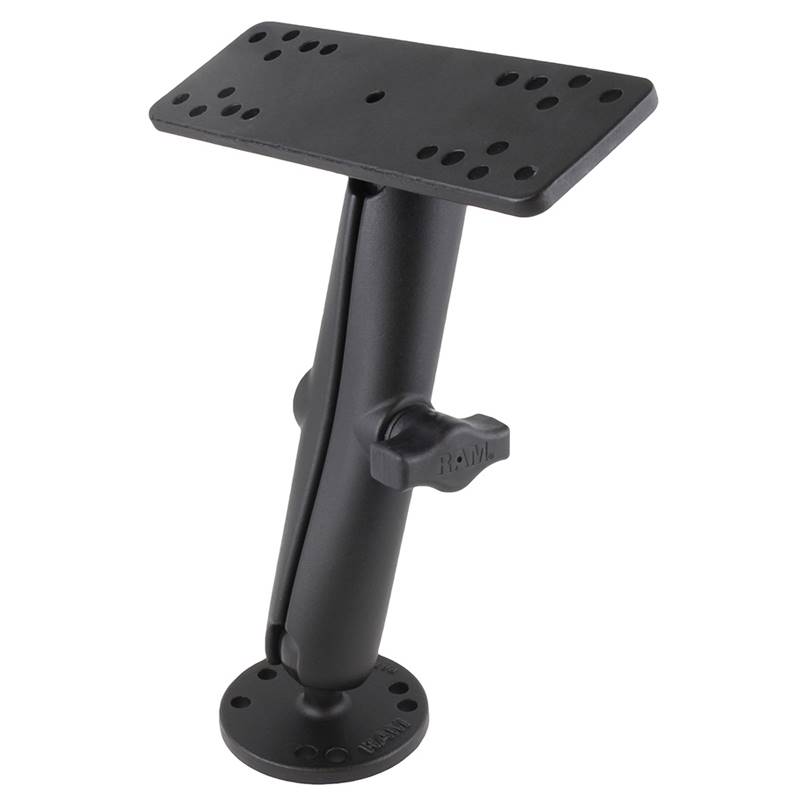

The RAM-B-111U-C consists of a long double socket arm, 2.5" diameter round base, and 6.25" x 2"
rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes,
including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball
and contains a variety of pre-drilled holes that are compatible with several marine electronic
devices, including fishfinders and chartplotters.

PRODUCT DIMENSIONS
Overall Height: 7.3125"

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

PLATE SIZE
Top Plate: 6.25" x 2.5"
Bottom Plate: 2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain
applications additional holes may need to be drilled for proper fit with your electronic device.

FEATURES:
Complete flat surface, drill-down mounting solution with an overall height of 7.5"

RAM Mounts ball and socket technology allows for near-infinite adjustability

Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding
marine environments

Backed by a lifetime warranty


WEIGHT
0.95 lbs.
