RAM Double Ball Yoke Clamp Mount with Di

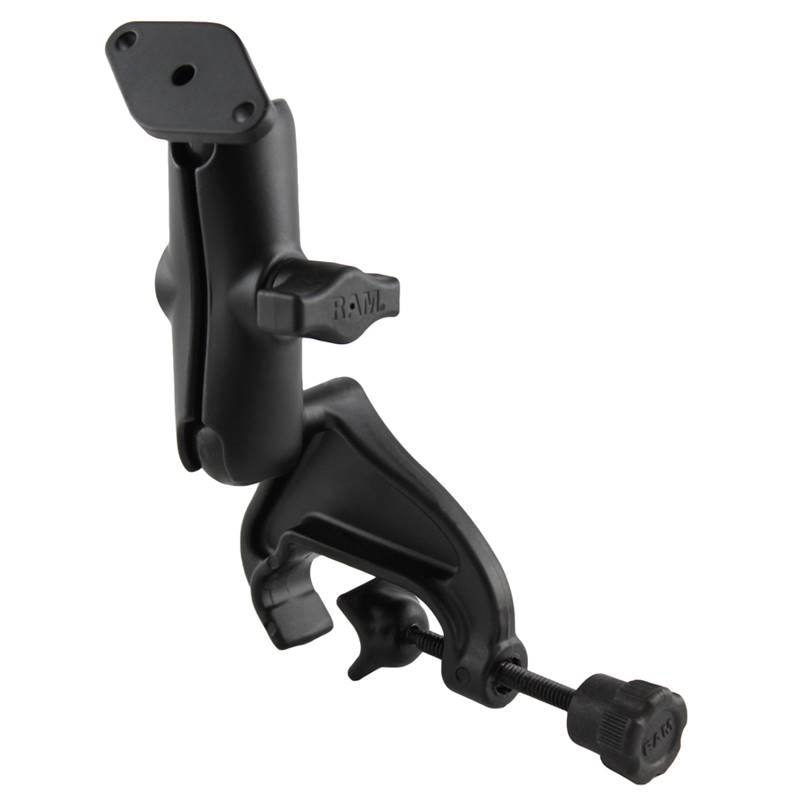

The RAM-B-121-238U consists of a yoke clamp base, standard length double socket arm and 2.43" x
1.31" diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of
1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail,
the ball sits parallel to the rail. The diamond base has two holes 1.912" from center to center,
matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and
third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm, allowing for almost
infinite adjustment and perfect viewing angles.

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.72 lbs.
