RAM Double Ball Yoke Clamp Mount with R

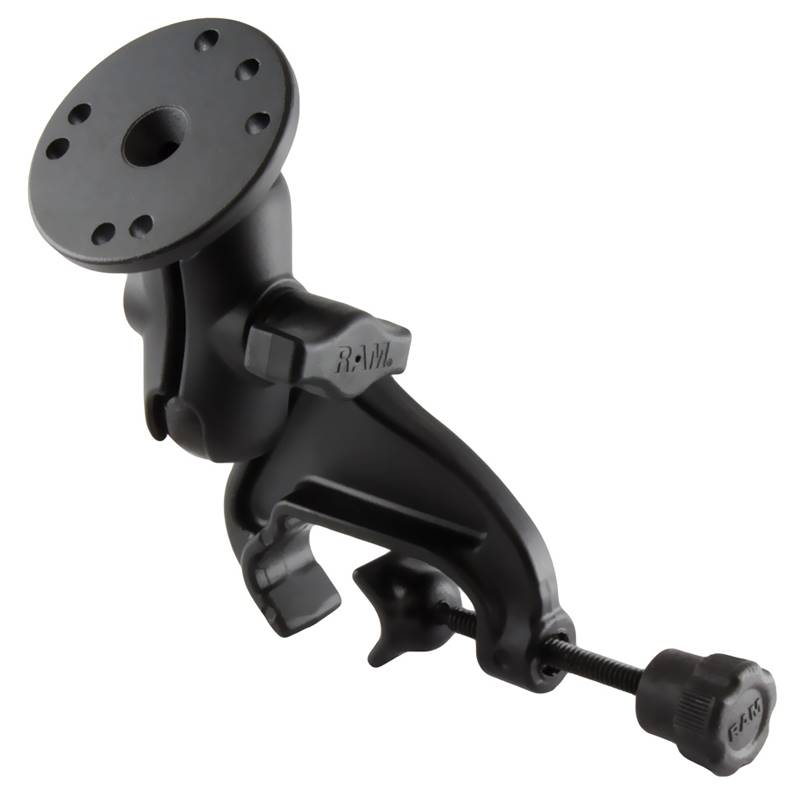

The RAM-B-121-A-202 consists of a yoke clamp base, SHORT length double socket arm and round 2.5"
base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter
from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount;
when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Retail Bag

WEIGHT
0.81 lbs.
