RAM Double Ball Yoke Clamp Mount with
RAM Double Ball Yoke Clamp Mount with
Regular price
$62.49 USD
Regular price
Sale price
$62.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442924842
Mfg Part #:
RAM-B-121-C-238U
Availability:
In Stock
Part Number:
RAM-B-121-C-238U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

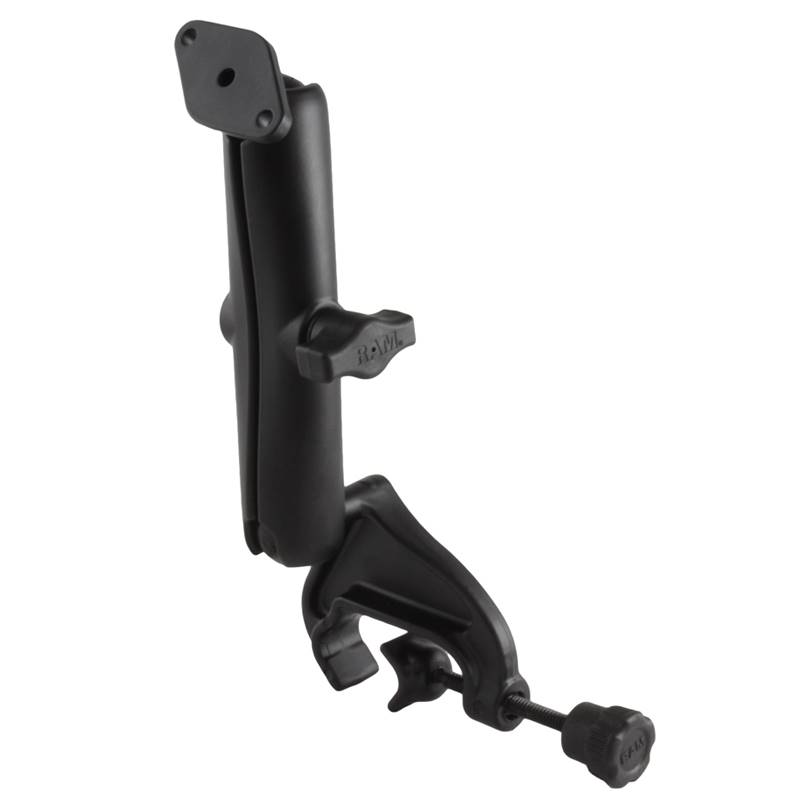

The RAM-B-121-C-238U consists of a yoke clamp base, LONG length double socket arm and 2.43" x 1.31"
diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The
1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball
sits parallel to the rail. The diamond base has two holes 1.912" from center to center, matches the
industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party
cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that
has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment
and perfect viewing angles.
CLAMP RANGE
.625" - 1.25"
SOCKET-TO-SOCKET LENGTH
5.31"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.72 lbs.
diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The
1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball
sits parallel to the rail. The diamond base has two holes 1.912" from center to center, matches the
industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party
cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that
has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment
and perfect viewing angles.
CLAMP RANGE
.625" - 1.25"
SOCKET-TO-SOCKET LENGTH
5.31"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.72 lbs.
Clamp Base Dimensions:
- Accommodates rails from 0.625" to 1.25" in diameter
Included in Kit:
- (1) QTY 8" long metal strap
- (1) QTY 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the rail
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.72 lbs.
