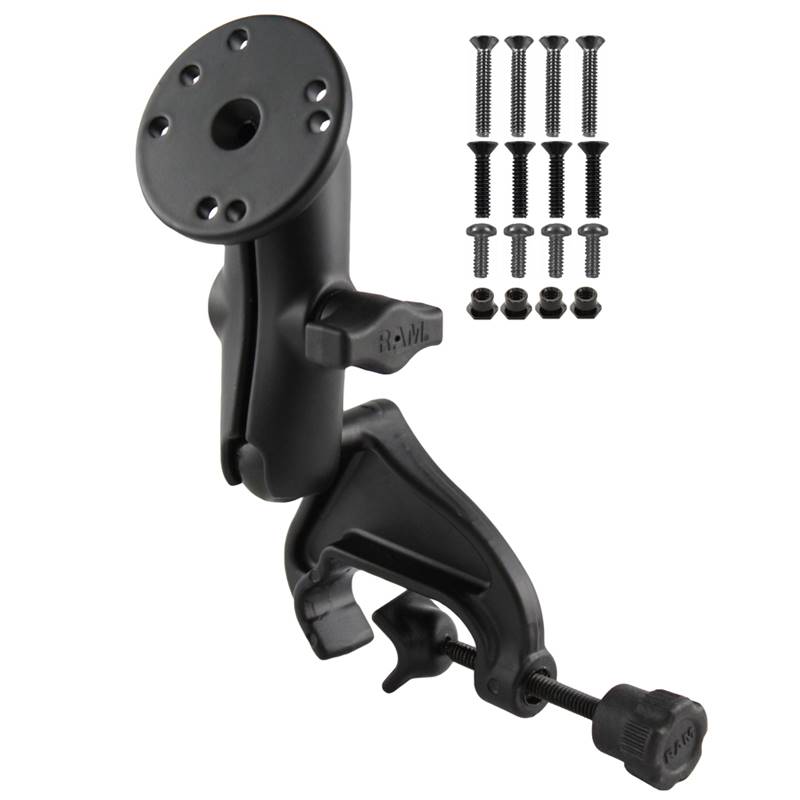

RAM Double Ball Yoke Clamp Mount with Gar

The RAM yoke mount consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter
Plate and connection hardware. This mount is designed to be a universal mounting solution for both
RAM and non-RAM designed products. The hole pattern found on the 2.5" Plate will connect to a large
variety of third party cradles and mounts. The base fits a rail diameter from 5/8" to a maximum of 1
1/4". The 1" rubber ball is at a right angle to the plane of the mount so when connected to a rail,
the ball sits parallel to the rail. To mount the base, simply place the yoke clamps around the rail
and then screw the large knob at the end of the threaded rod. The hand tightened clamp makes this
the perfect mounting system for rental planes and unusual shaped motorbike rails. The rail does not
need to be perfectly round to mount this base.

HARDWARE INCLUDED
(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.74 lbs.
