RAM-B-121-TAB12U RAM Tab-Tite Yoke Clamp Mount for iPad

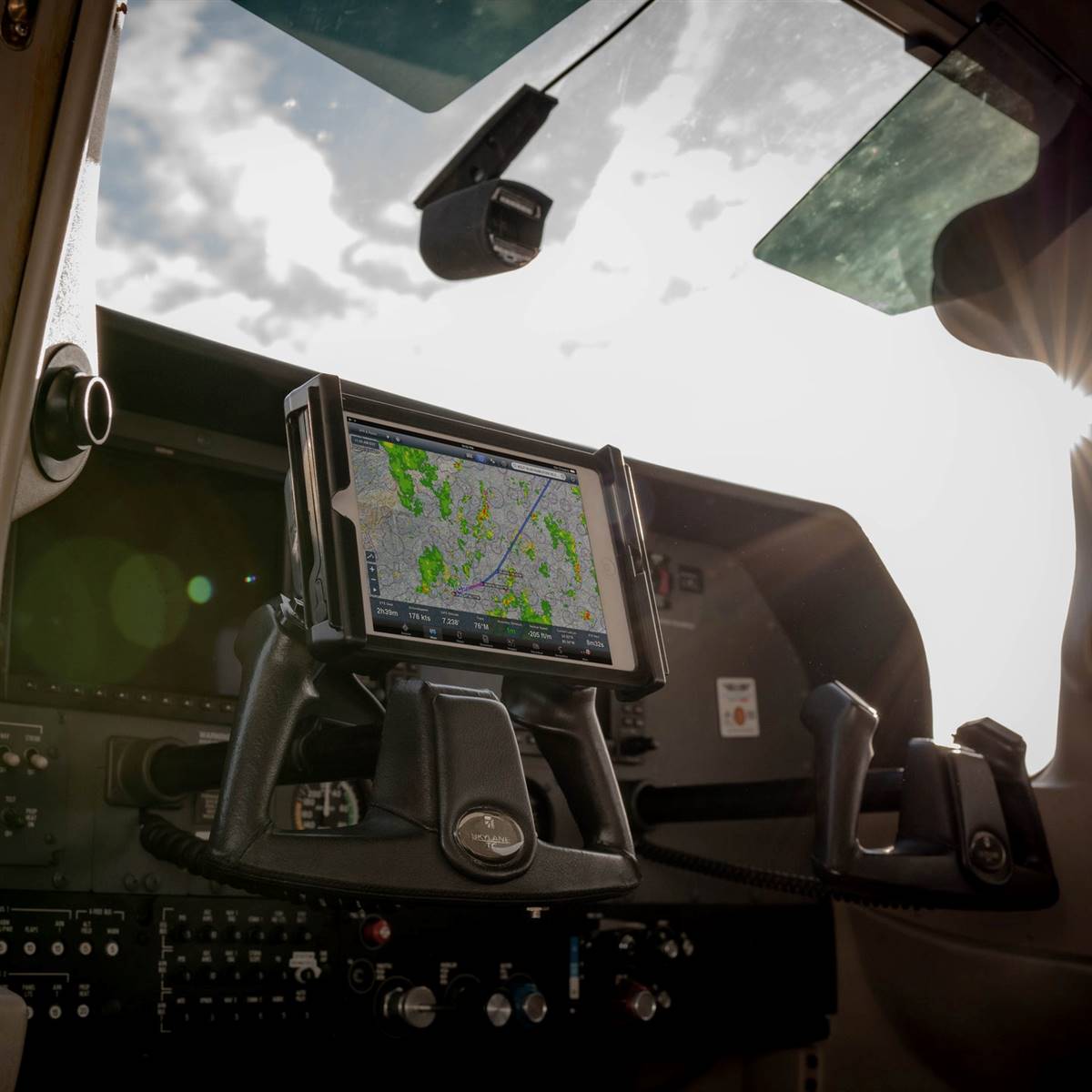

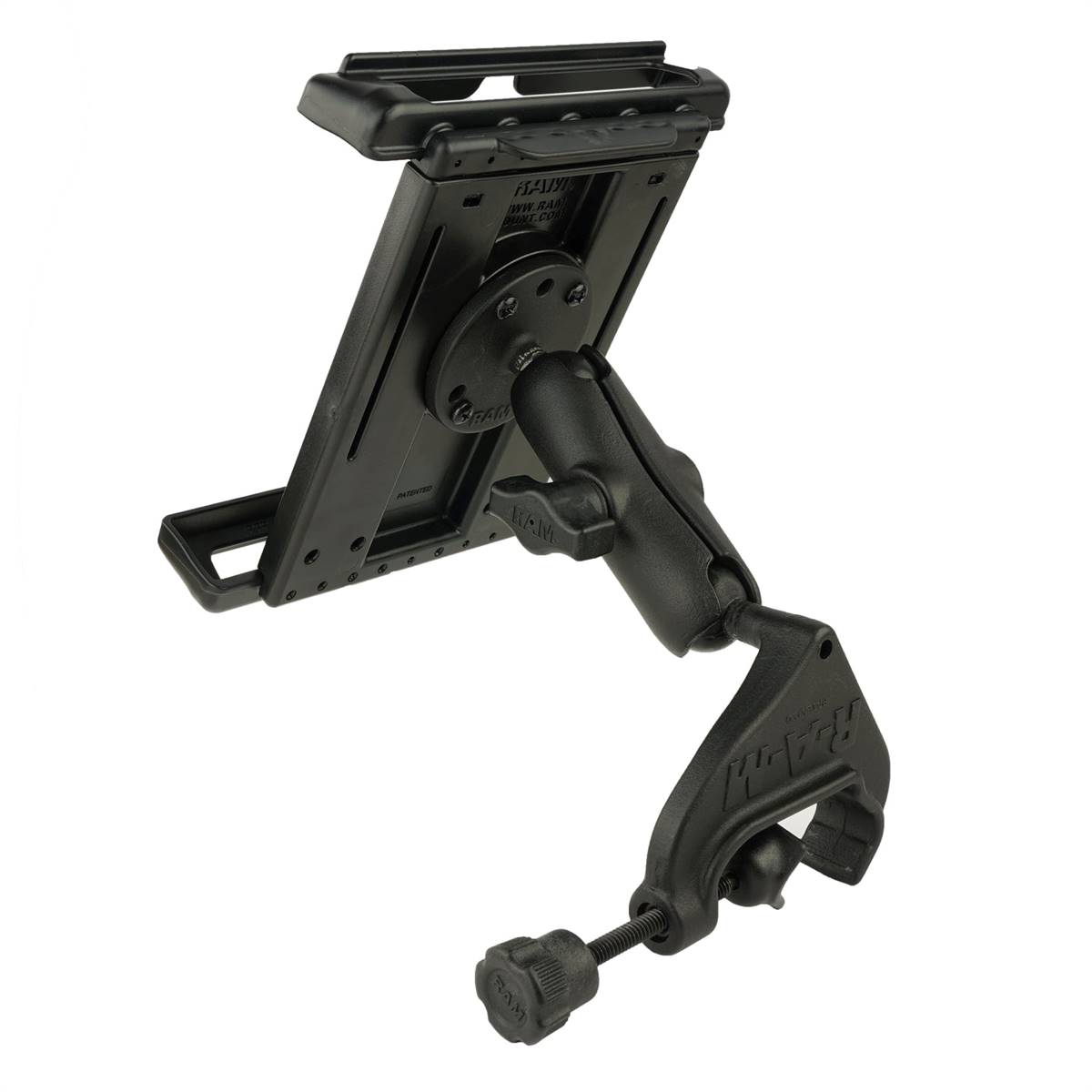

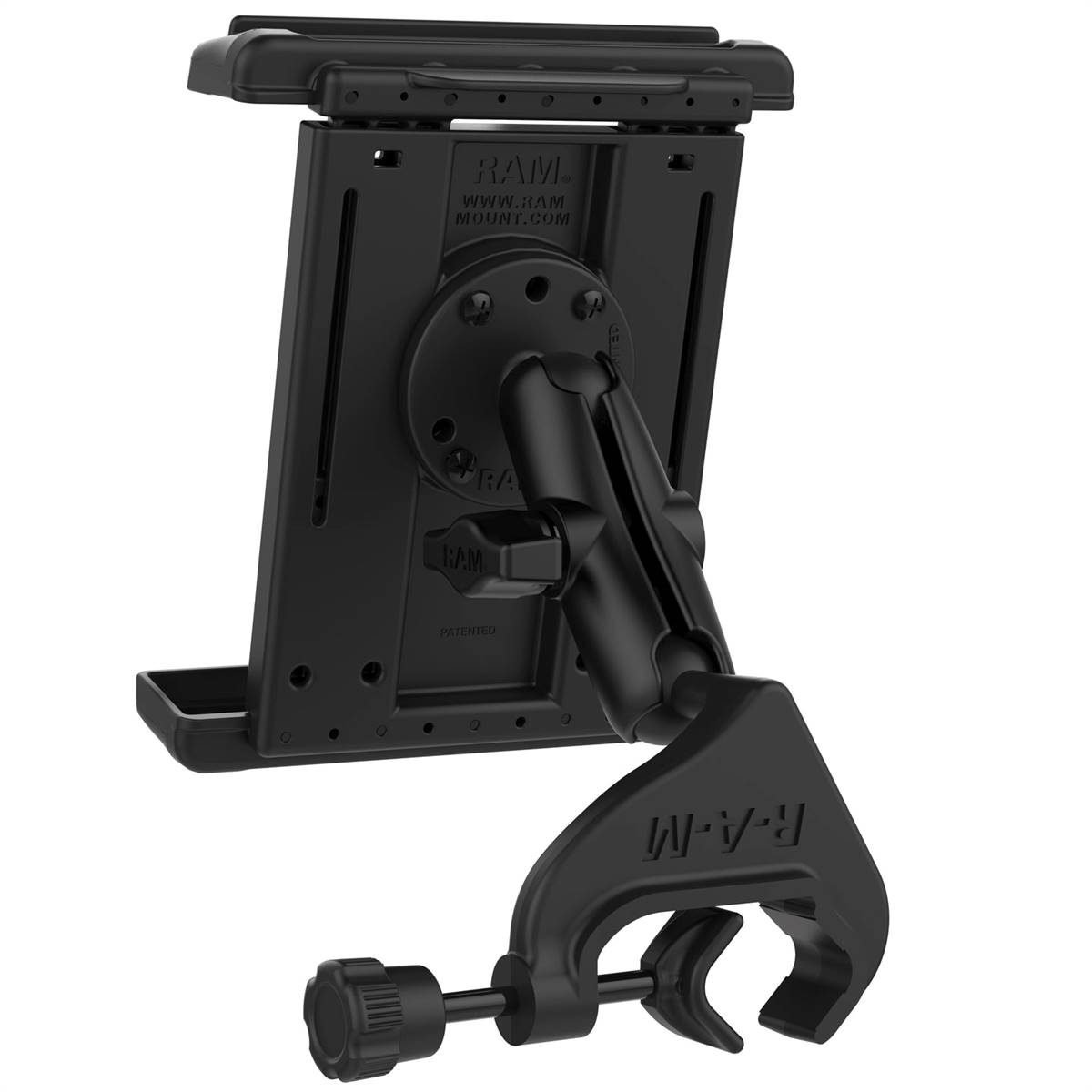

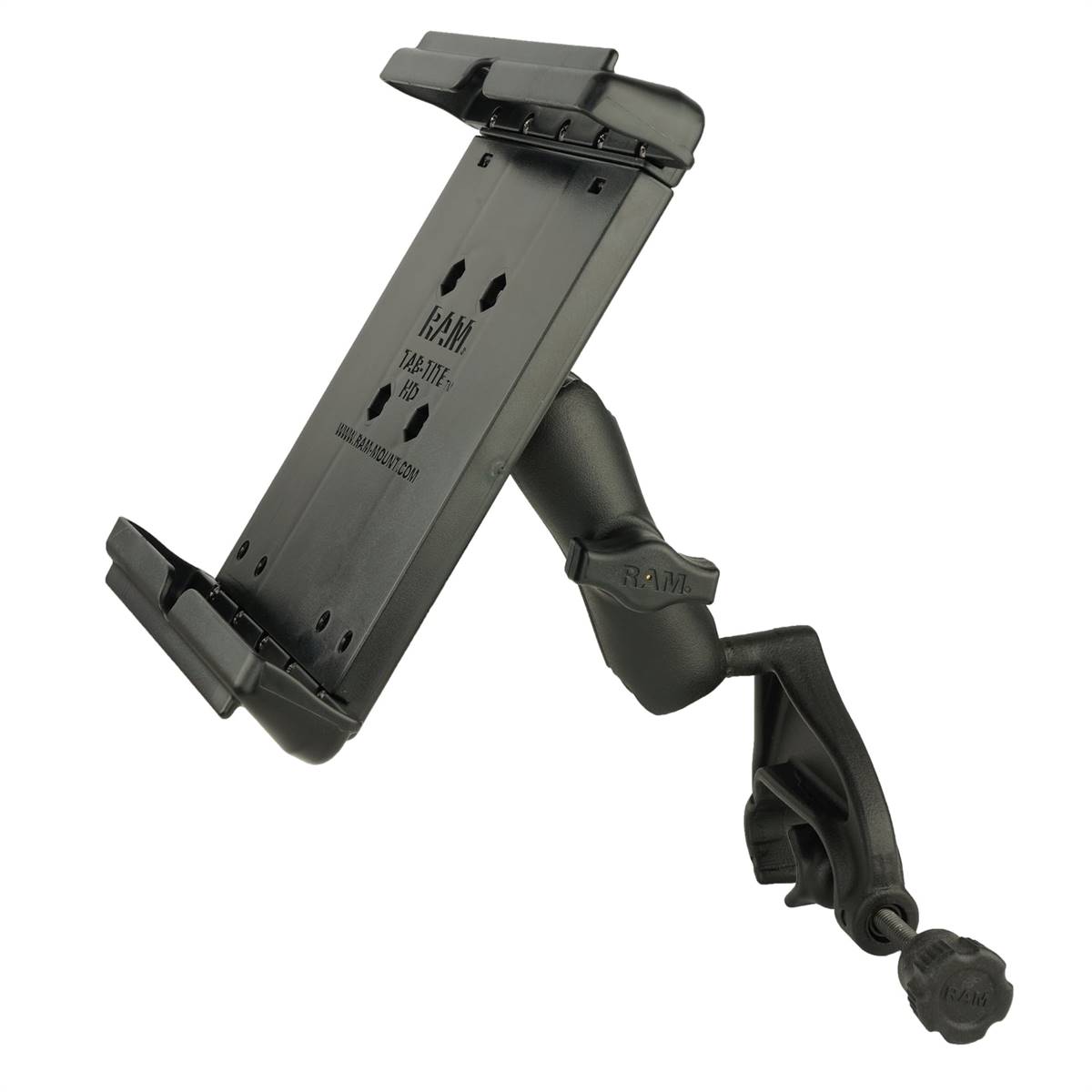

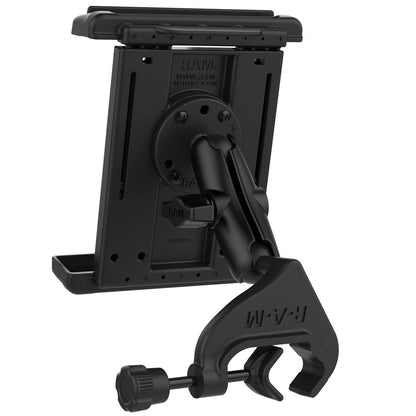

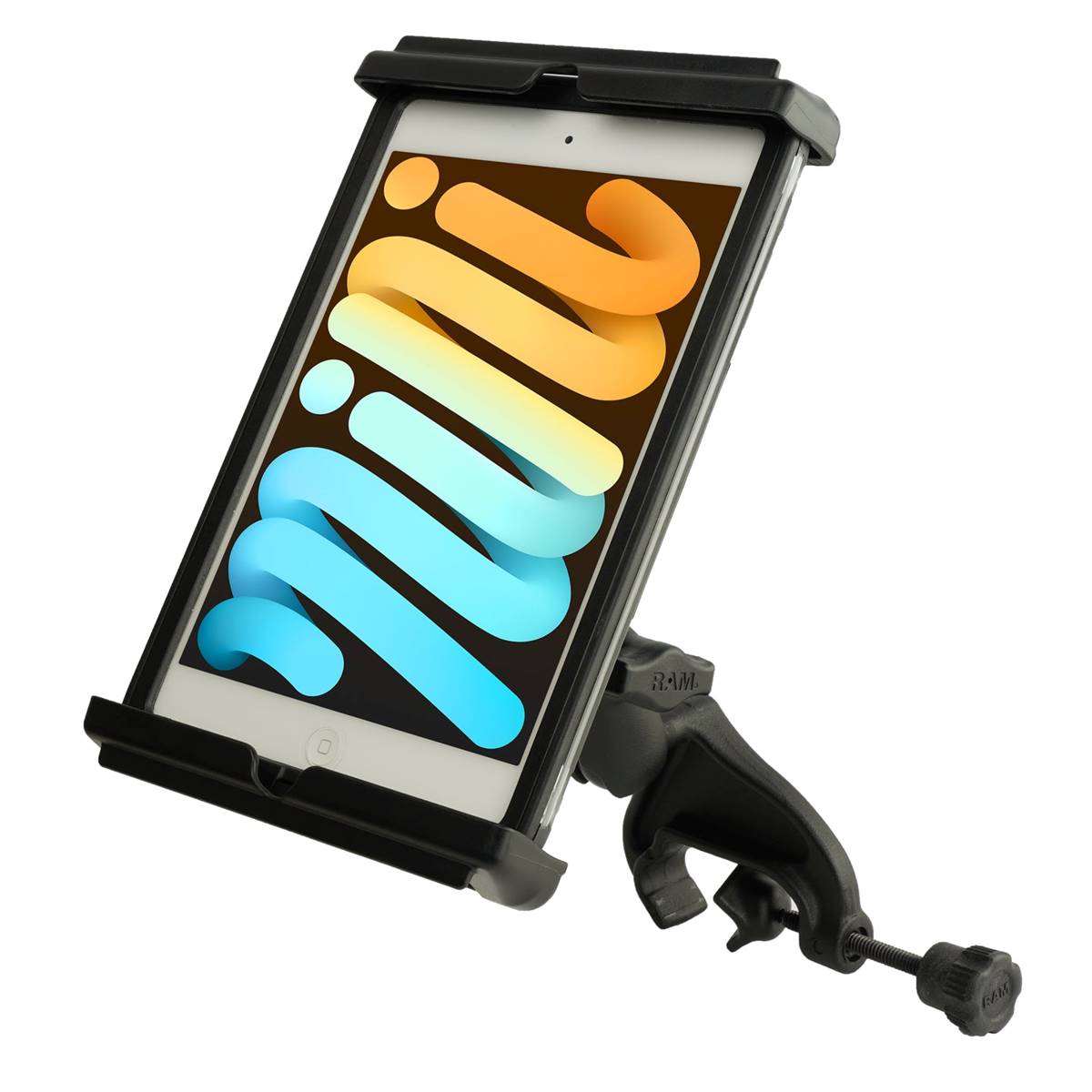

This ideal airplane yoke mount is designed specifically to hold any 8" tablet with a heavy duty case including the Apple iPad mini 6 as well as all previous iPad mini models, and consists of a RAM Tab-Tite, yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPS hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. The RAM Tab-Tite spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM components that contain the universal AMPS hole pattern. The RAM Tab-Tite holder is compatible with any tablet within the listed dimensions.

FEATURES

Spring-loaded holder secures iPad mini 6 and previous mini models with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices

Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount

Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments

Backed by a lifetime warranty

hardware included
Assembly Hardware

holder dimensions
Height Range: 7.125" - 9.5"Width Range: 5.06" - 5.68"Depth Range: .13" - 1"

clamp range
.625" - 1.25"

socket to socket length
3"

ball size
B Size (1")

weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lb

materials
Marine-grade aluminumHigh strength composite

packaging type
Poly Bag

Weight
1.43 lb
