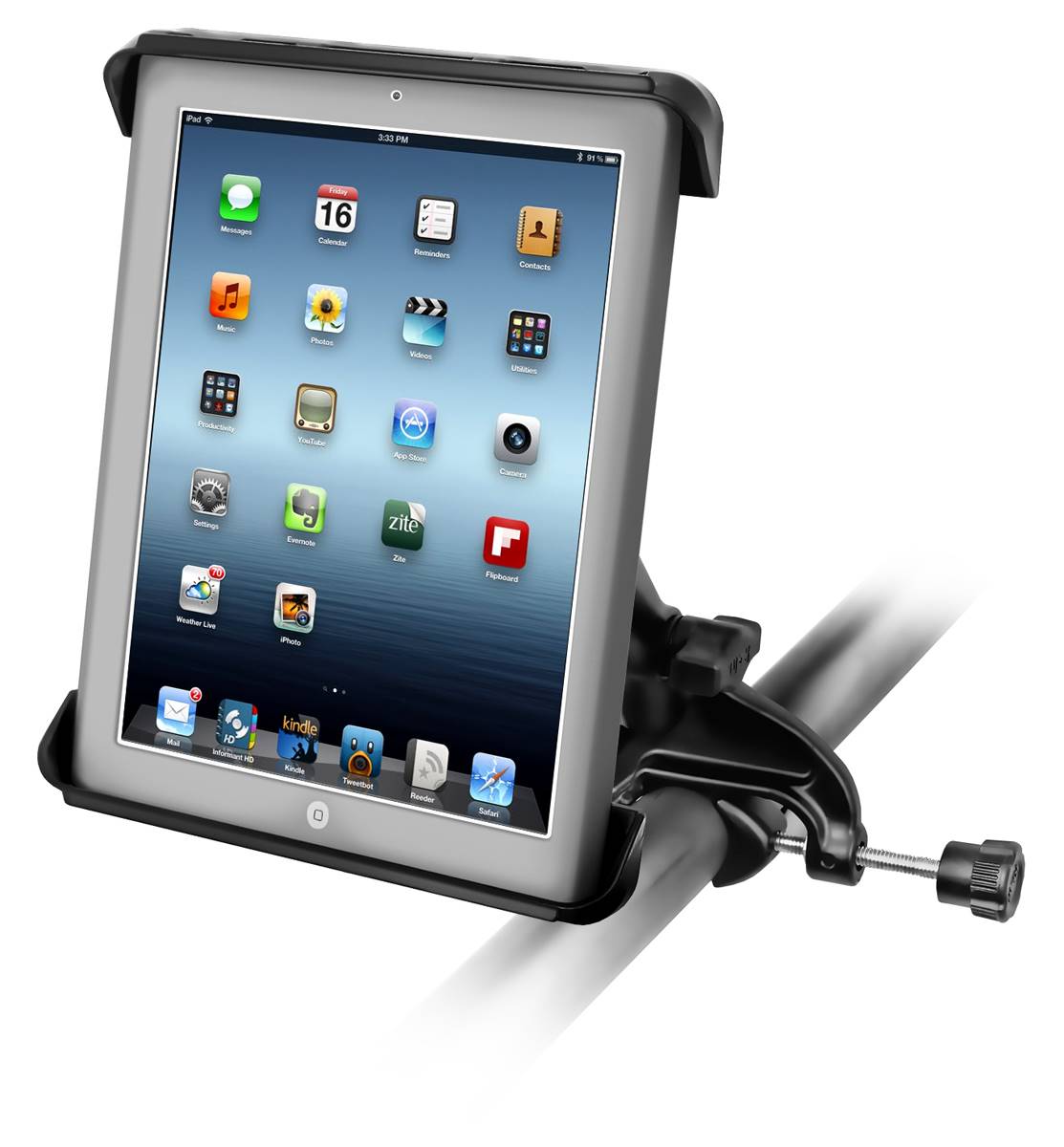

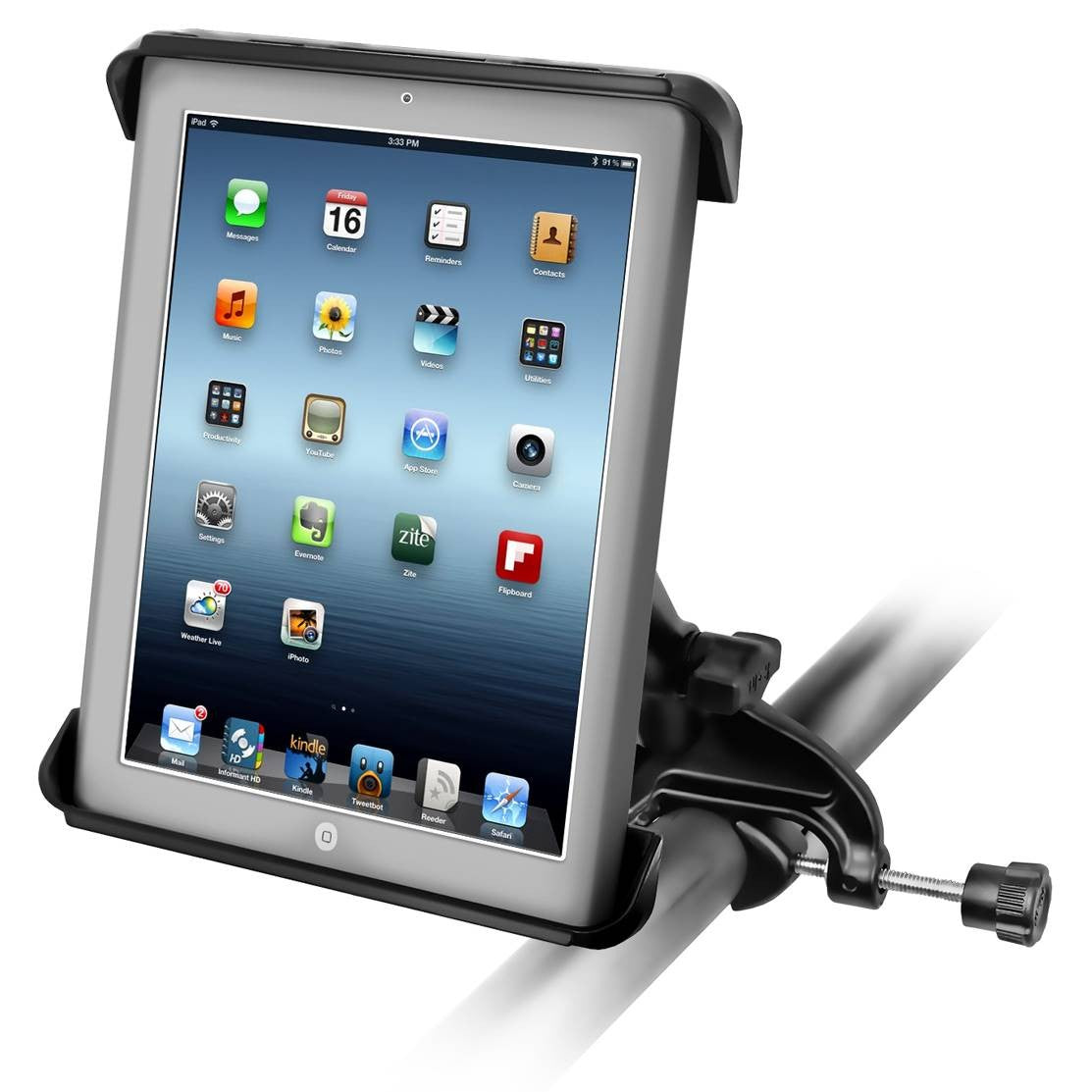

RAM Tab-Tite Yoke Clamp Mount for iPad

The RAM-B-121-TAB3U consists of a yoke clamp base, double socket arm, round base adapter and Tab-
Tite universal clamping cradle. The clamp base will accommodate rails in diameter from 0.625" to
1.25". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles. The spring loaded Tab-Tite cradle makes it easy to load and
unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are
designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power,
and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible
with any tablet that will fit the dimensions listed below. It is important to verify the dimensions
of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.3 lbs.
