RAM Tab-Tite Yoke Clamp Mount for 9"-10

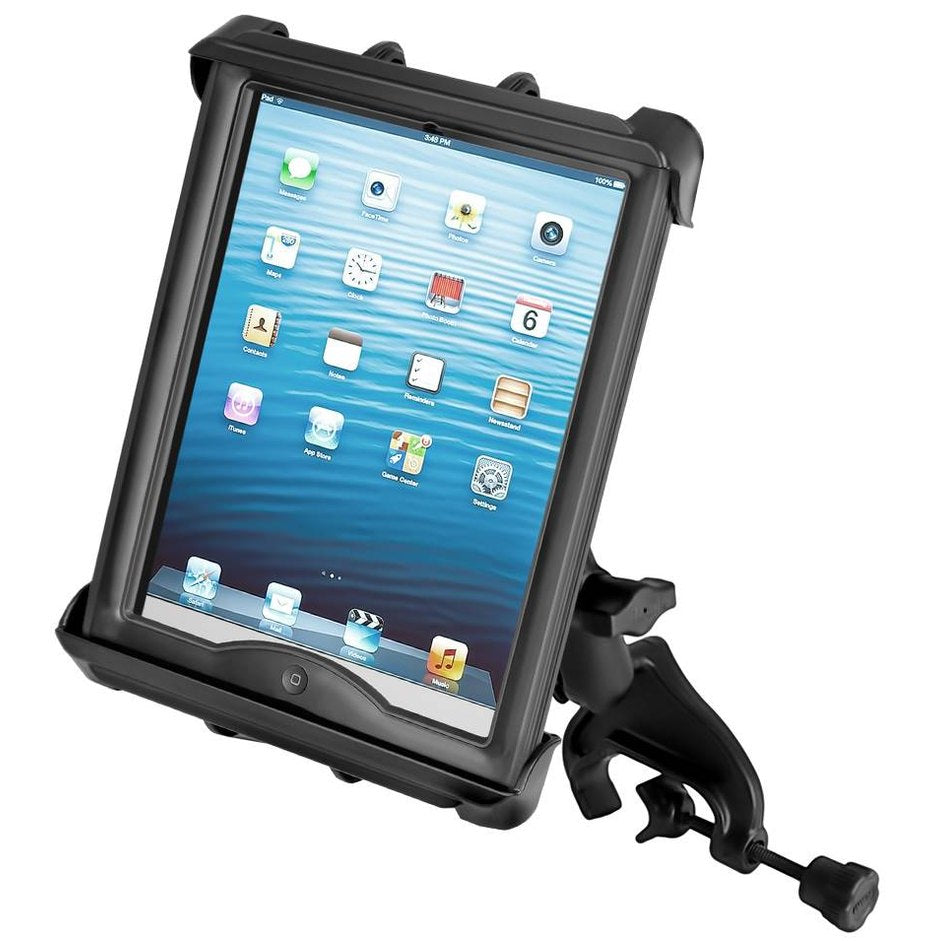

The RAM-B-121-TAB8U consists of a yoke clamp base, double socket arm, round base adapter and Tab-
Tite universal clamping cradle. The mount is designed with a RAM 1" diameter patented rubber ball
and socket system that has adjustment points at both ends of the double socket arm; this allowing
for almost infinite adjustment and perfect viewing angles. The included Tab-Tite cradle includes a
spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The
spring loaded design makes it easy to load and unload your tablet, along with keeping it secure
while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet,
allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was
intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed
below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.13 lbs.
