RAM X-Grip Mount with Yoke Clamp Base fo

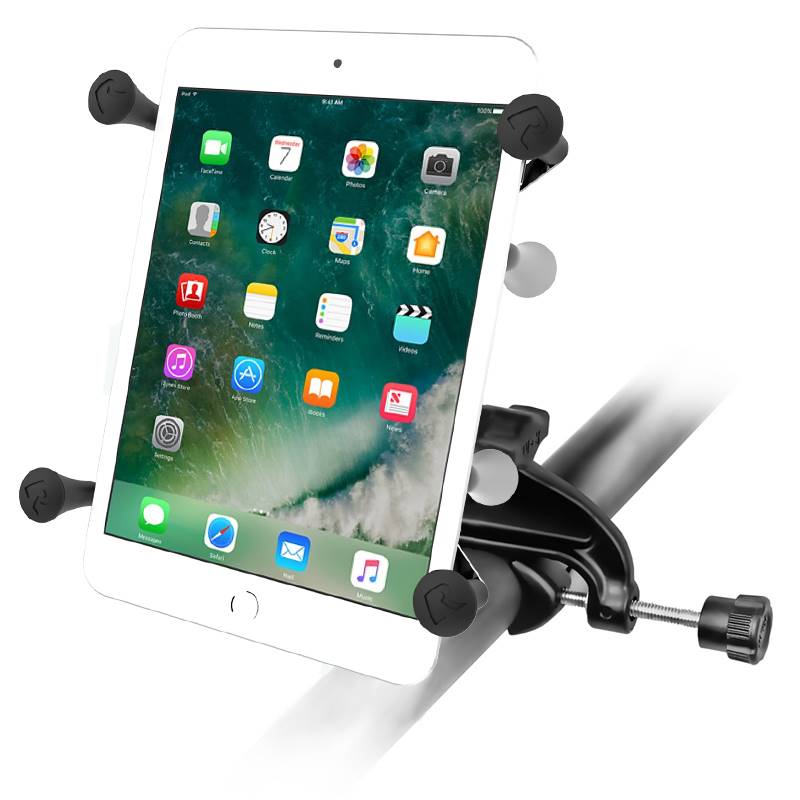

The RAM-B-121-UN8U consists of a yoke clamp base, double socket arm system and universal spring
loaded X-Grip cradle for 7"-8" tablets. The yoke clamp base will fit rails from 0.625" to a maximum
of 1.25". The 1" rubber ball is positioned at a right angle to the plane of the mount; when
connected to a rail, the ball sits parallel to the rail. Designed into the mount is a 1" diameter
patented rubber ball and socket system with adjustment points at the both ends of the socket arm;
this with a twist of the arm knob, allows you can move the mount to your optimum viewing position.
The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 7"
tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick
release of your tablet. The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with handheld devices that will fit the dimensions listed below. It is
important to verify the dimensions of your handheld device with a case/sleeve/skin when determining
the overall size.

HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION


WEIGHT
0.91 lbs.
