RAM X-Grip Mount with Yoke Clamp Base fo

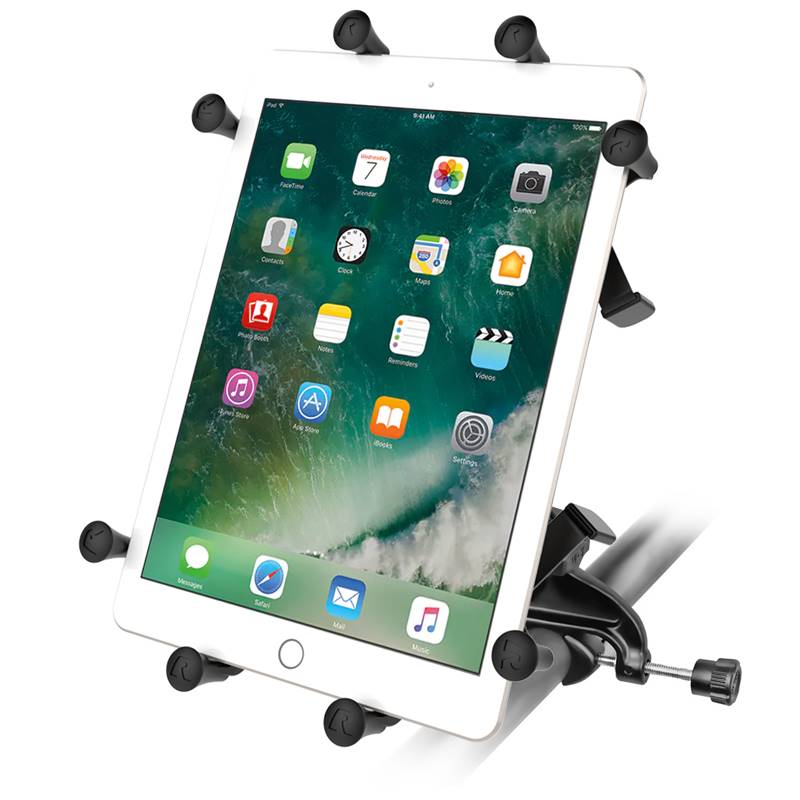

The RAM-B-121-UN9U consists of a yoke clamp base, double socket arm, round adapter base and
universal X-Grip III clamping cradle for 10" tablets. The RAM yoke clamp mount will fit rails from
0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when
connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The
X-Grip III clamping cradle consists of a composite spring loaded cradle, expandable grip arms and
additional bottom support keeper. Included are extra easy access grip knobs, located on the back of
the cradle for quick release of your tablet. The X-Grip III clamping cradle expands and contracts
for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please
verify dimensions of your tablet below for compatibility with the X-Grip III.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.8 lbs.
