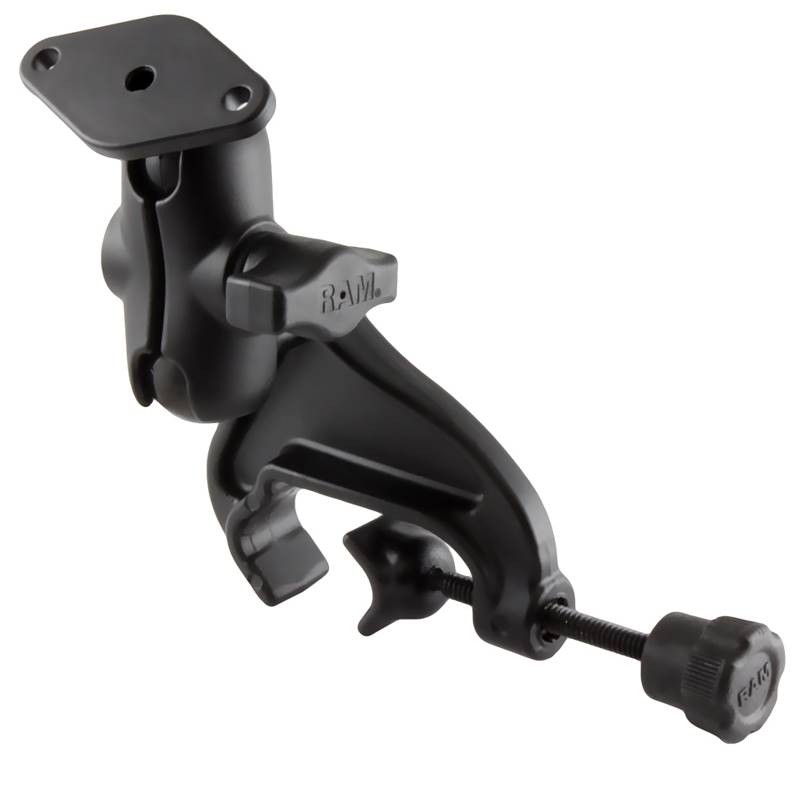

RAM Double Ball Yoke Clamp Mount with

The RAM-B-121U-A-238 consists of a yoke clamp base, SHORT length double socket arm and 2.43" x 1.31"
diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The
1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball
sits parallel to the rail. The diamond base has two holes 1.912" from center to center, matches the
industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party
cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that
has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment
and perfect viewing angles.

HARDWARE INCLUDED
Assembly Hardware

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.72 lbs.
