RAM Double Ball Yoke Clamp Mount with Roun
RAM Double Ball Yoke Clamp Mount with Roun
Regular price
$63.49 USD
Regular price
Sale price
$63.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442924859
Mfg Part #:
RAM-B-121U-C
Availability:
In Stock
Part Number:
RAM-B-121U-C
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

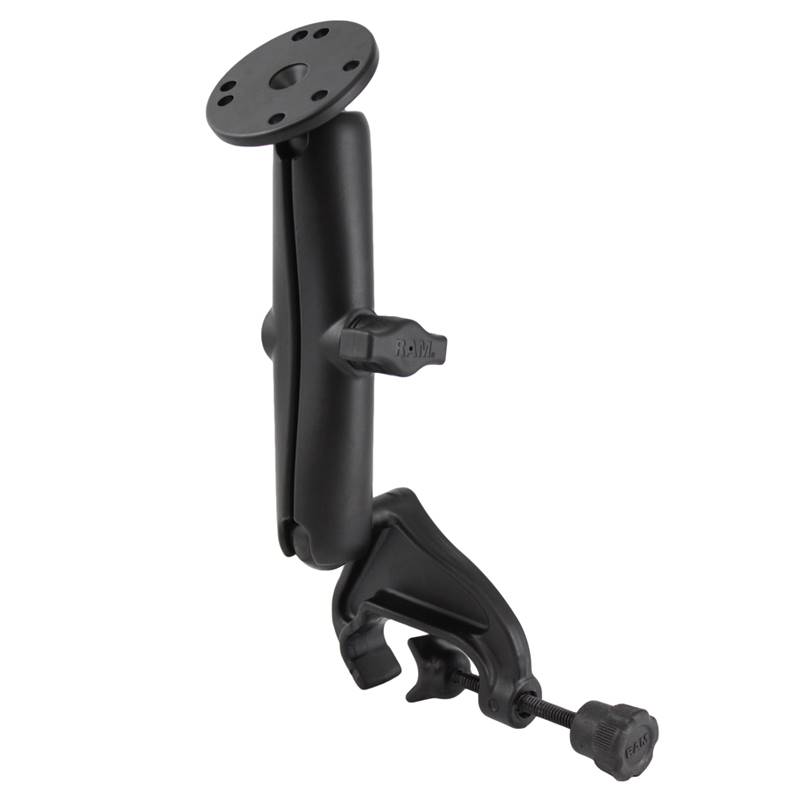

The RAM-B-121U-C consists of a yoke clamp base, LONG length double socket arm and round 2.5" base
that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from
0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when
connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
CLAMP RANGE
.625" - 1.25"
SOCKET-TO-SOCKET LENGTH
5.31"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from
0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when
connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
CLAMP RANGE
.625" - 1.25"
SOCKET-TO-SOCKET LENGTH
5.31"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
Clamp Base Dimensions:
- Accommodates rails from 0.625" to 1.25" in diameter
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.75 lbs.
