RAM-B-125U-A_RAM Double Ball Yoke Clamp Mount with Angl

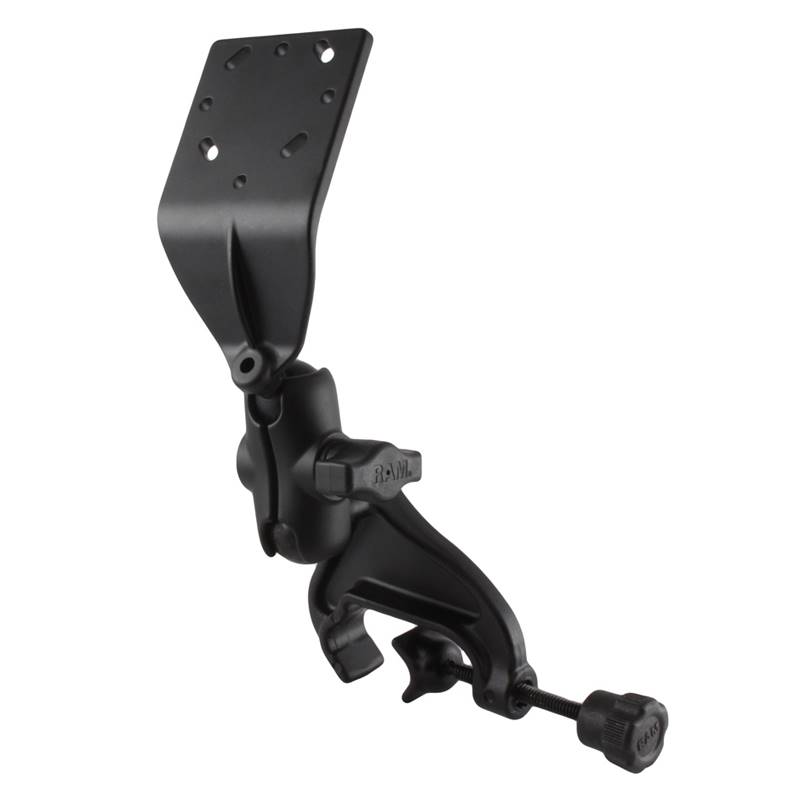

The RAM-B-125U-A consists of a yoke clamp base, SHORT length double socket arm and angled extension
plate that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter
from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount;
when connected to a rail, the ball sits parallel to the rail. Originally designed to position your
GPS in front of the yoke on your plane, the angled extension plate can also be used in many other
applications. The mounting section of the plate is 2.5" square, pre-drilled holes for many different
screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The
connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the
1" ball and approximately 1.5'' above the 1" ball (to the bottom of the connection section of the
plate). The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has
adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and
perfect viewing angles.

CLAMP RANGE
.625" - 1.25"

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
Various AMPS Hole Patterns
See Drawing

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.91 lbs.
