RAM Pin-Lock Drill-Down Locking Mount

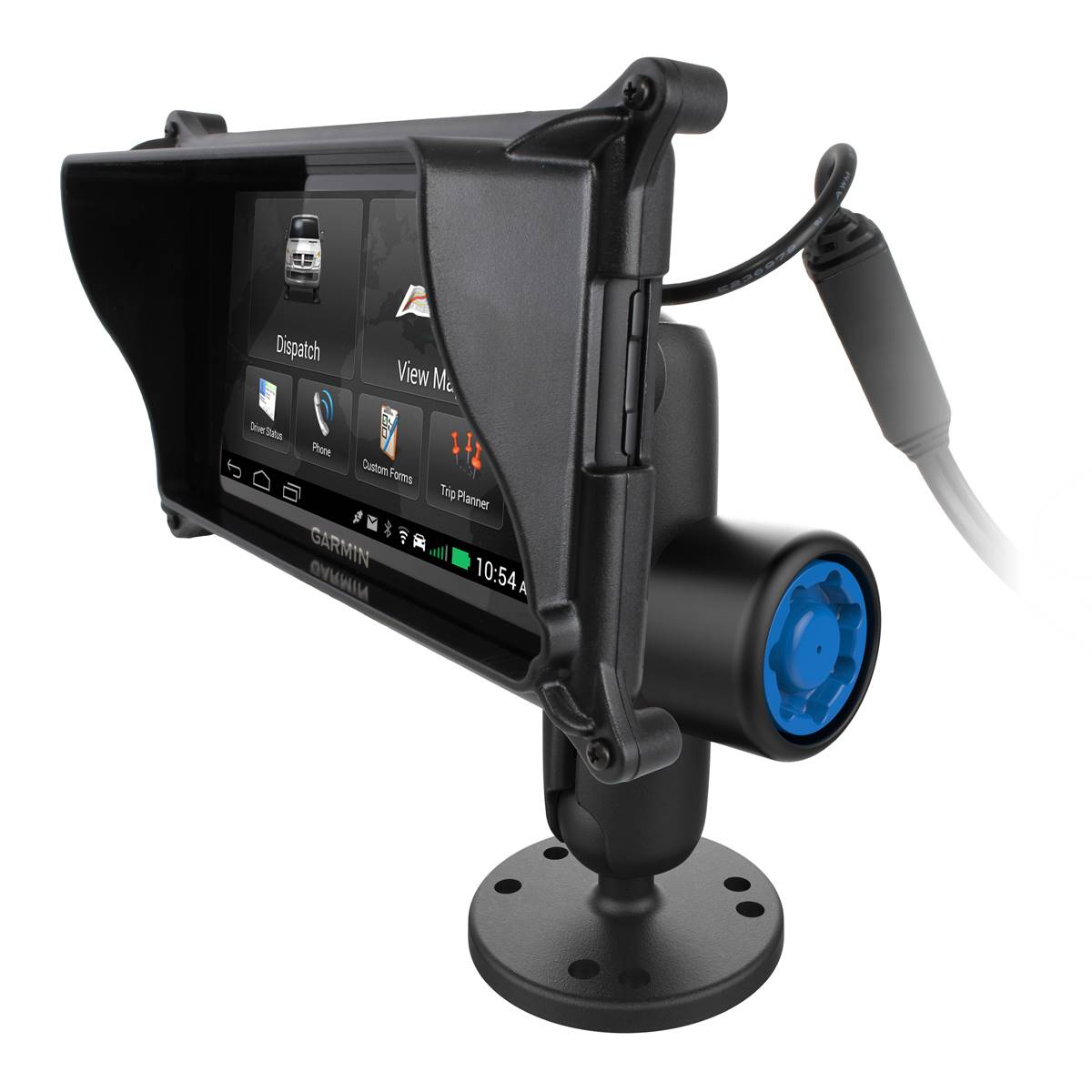

The RAM-B-138-GA66LU consists of a double socket arm, Pin-Lock security knob/key knob, 2.5"
diameter round base with the universal AMPS hole pattern, diamond adapter base and custom high
strength composite locking case for the Garmin fleet 660/670. The locking case features the ability
to secure your Garmin fleet 660/670 in place adding much needed protection and enables full access
to the screen, power plug, and memory card slot. The case consists of a front and back cover that
can be secured together using standard pop rivets or security screws. The locking case also features
a unique cable retention system that prevents accidental unplugging of the USB cable. Paired with a
RAM Pin-Lock security knob/key knob, this solution is the ideal accessory for deterring theft or
accidental removal of the mounted GPS device.

HARDWARE INCLUDED
Assembly Hardware
(1) RAM Pin-Lock Security Key

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
Designed for use with third party EOBR equipment and recording hours of service in compliance with
CSA (compliance, safety, accountability) initiative. To learn more visit the Federal Motor Carrier
Safety Administration (FMCSA) website. For more information about Garmin Commercial Solutions and
PND-based Mobile Resource Management (MRM) Solutions, visit the Garmin website.

WEIGHT
1.0 lbs.
