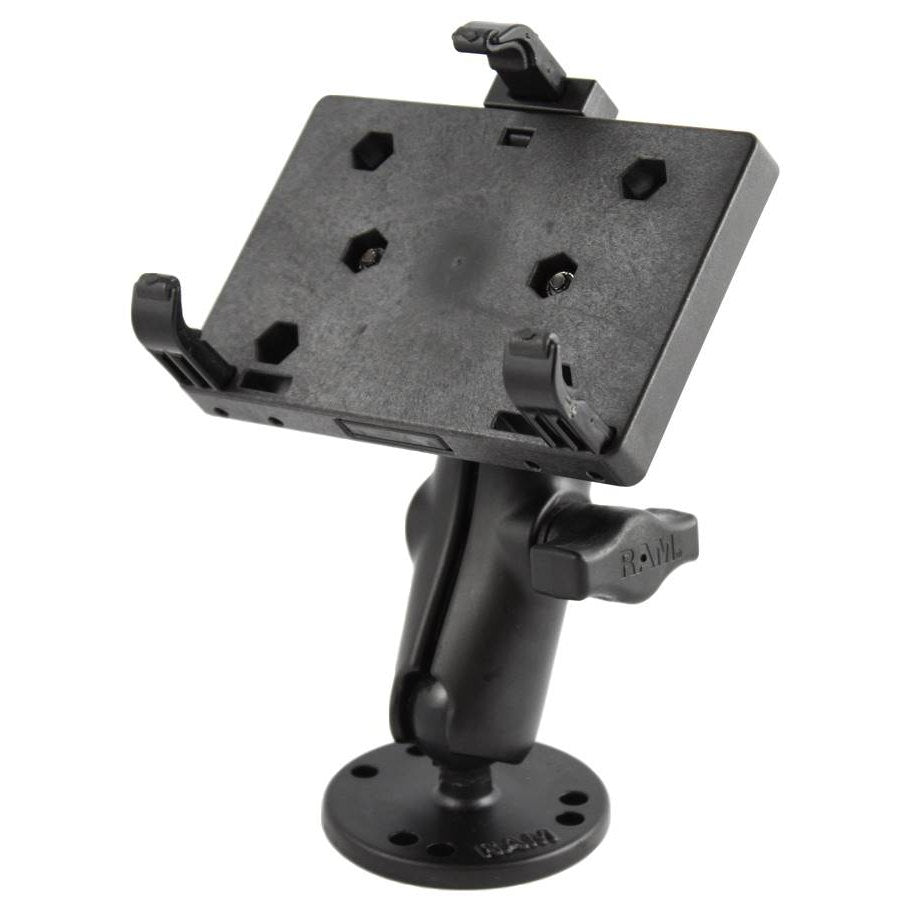

RAM Double Ball Drill-Down Mount with Un
RAM Double Ball Drill-Down Mount with Un
Regular price
$65.49 USD
Regular price
Sale price
$65.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442912191
Mfg Part #:
RAM-B-138-PD2U
Availability:
Out Of Stock
Part Number:
RAM-B-138-PD2U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Width Range: 2.875" - 3.5"
Depth Range: .375" - 1.125"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
Assembly Hardware
HOLDER DIMENSIONS
Width Range: 2.875" - 3.5"
Depth Range: .375" - 1.125"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.75 lbs.
Cradle Clamping Dimensions:
- Thickness Range: 3/8" - 1 1/8"
- Width Range: 2 7/8" - 3.5"
Length sizes for each set of three arms:
- Short Length: 1/2"
- Medium Length: 7/8"
- Long Length: 1 3/16"
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.75 lbs.
