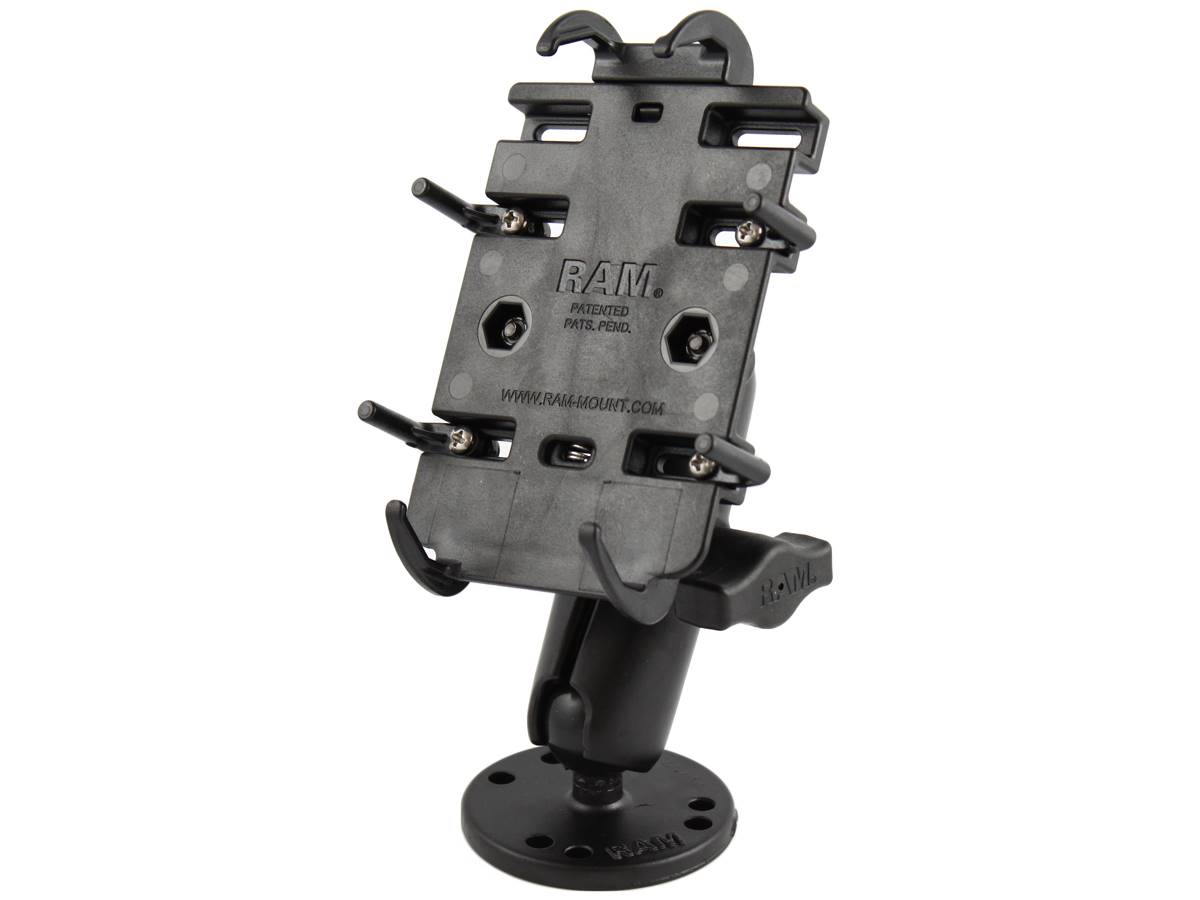

RAM Quick-Grip Spring-Loaded Phone Mount
RAM Quick-Grip Spring-Loaded Phone Mount
Regular price
$52.99 USD
Regular price
Sale price
$52.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442925214
Mfg Part #:
RAM-B-138-PD3U
Availability:
In Stock
Part Number:
RAM-B-138-PD3U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components
The RAM Quick-Grip device mount is capable of holding a broad range of electronic devices. The
spring loaded mechanism and the adjustable side keepers allow for a secure grip on your device.
Whether it is a cell, GPS, blue tooth speaker or anything that will fit in the dimensions of the
cradle, your electronics will be secure. The mount is designed with a B size 1" diameter rubber ball
and socket system that has adjustment points at both ends of the double socket arm; this allowing
for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.63 lbs.
spring loaded mechanism and the adjustable side keepers allow for a secure grip on your device.
Whether it is a cell, GPS, blue tooth speaker or anything that will fit in the dimensions of the
cradle, your electronics will be secure. The mount is designed with a B size 1" diameter rubber ball
and socket system that has adjustment points at both ends of the double socket arm; this allowing
for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.63 lbs.
Cradle Clamping Dimensions:
- Height Range: 4.75" - 5.25"
- Width Range: 2.19" - 3.25"
- Max Depth: 0.72"
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.63 lbs.
