RAM-B-138-UN7-225B2U RAM X-Grip Phone Mount with Drill-

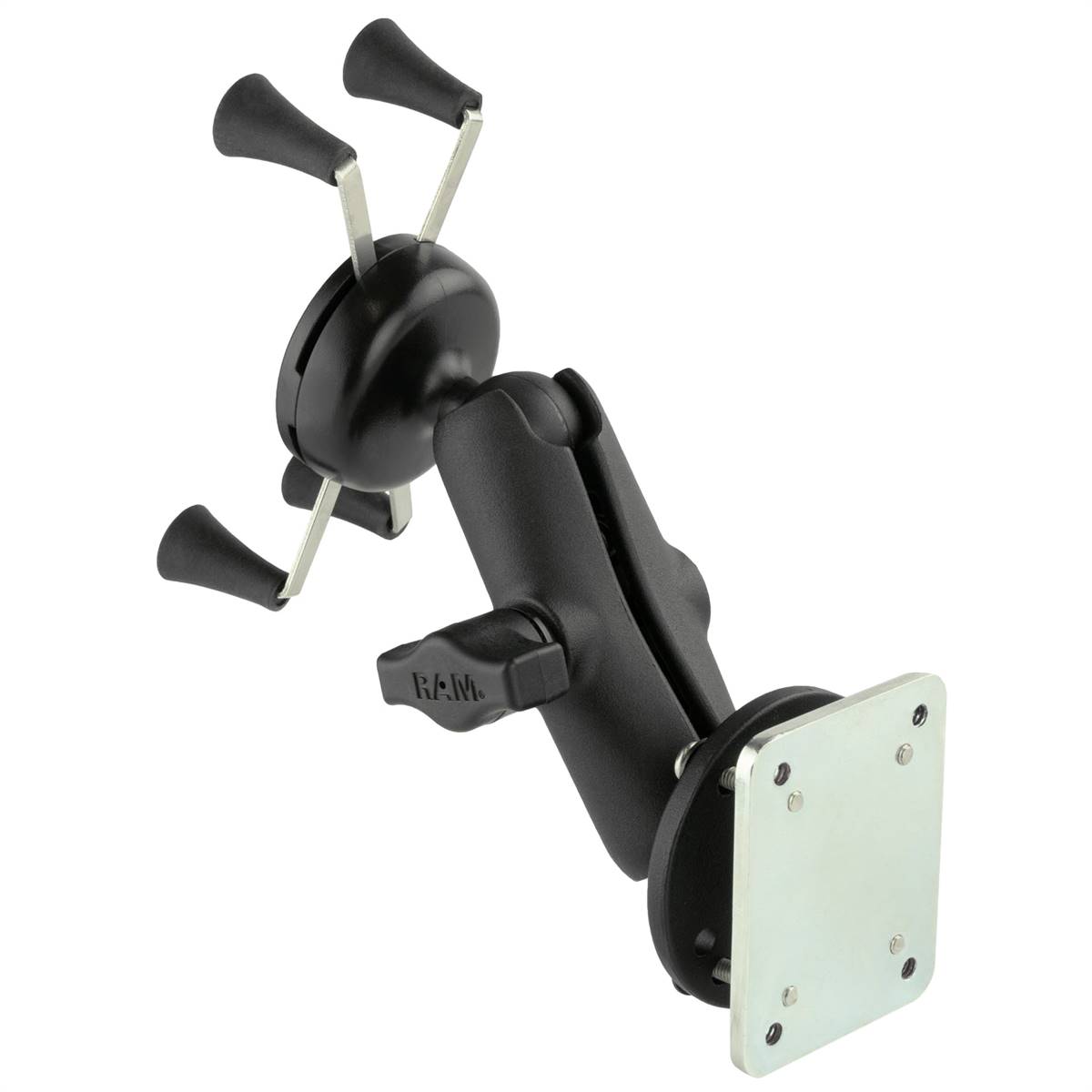

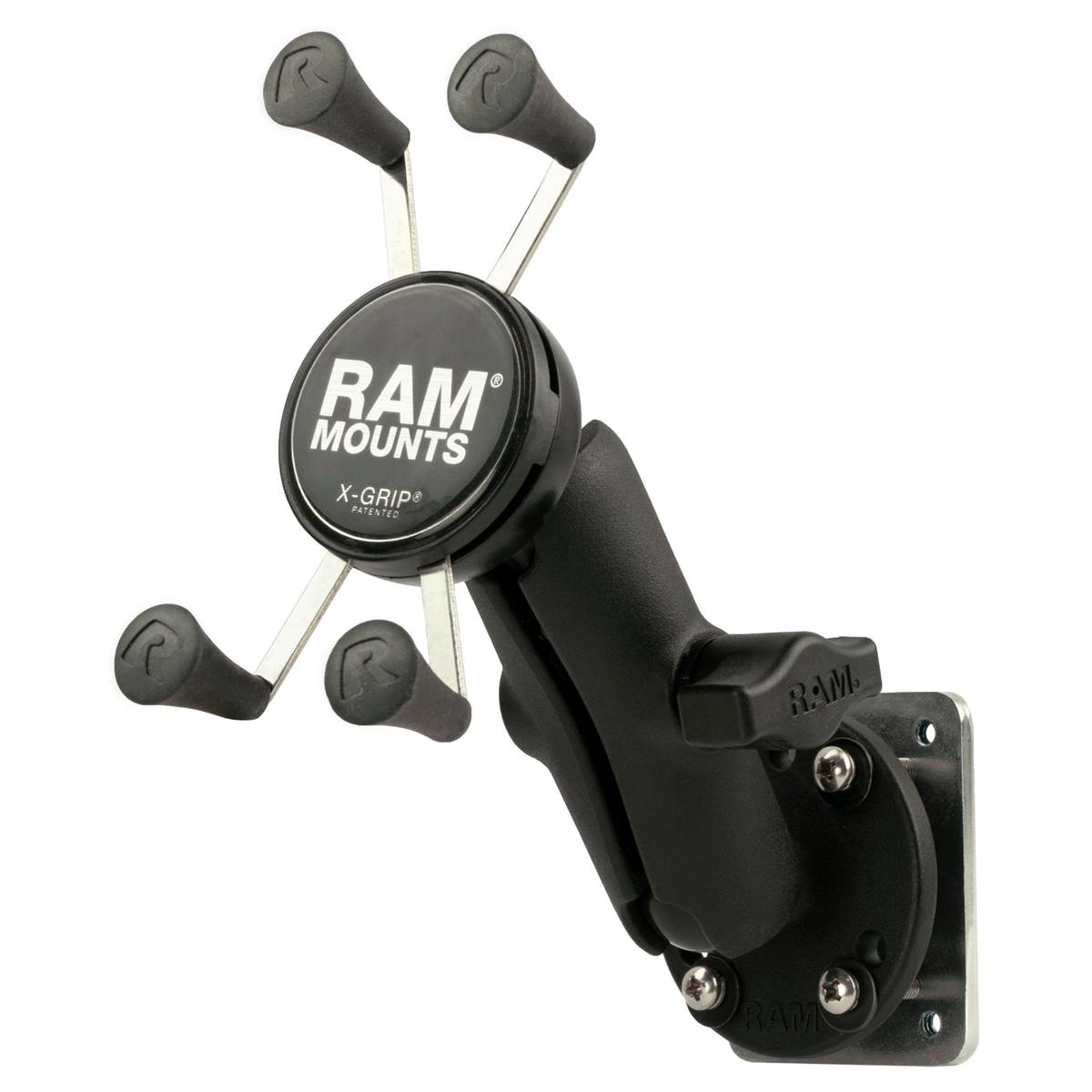

The RAM-B-138-UN7-225B2U consists of a 2.10" x 2.60" steel backer plate, 2.5" diameter round base, double socket arm and universal spring loaded X-Grip cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

hardware included
(1) Optional Tether(1) Glue Tube for Rubber Caps(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers

holder dimensions
Width Range: 1.875" - 3.25"Depth Range: .875" max

socket to socket length
3"

hole pattern
4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

ball size
B Size (1")

weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lb

materials
Marine-grade aluminumHigh strength compositeStainless steel

packaging type
Poly Bag

Weight
1.2 lb
