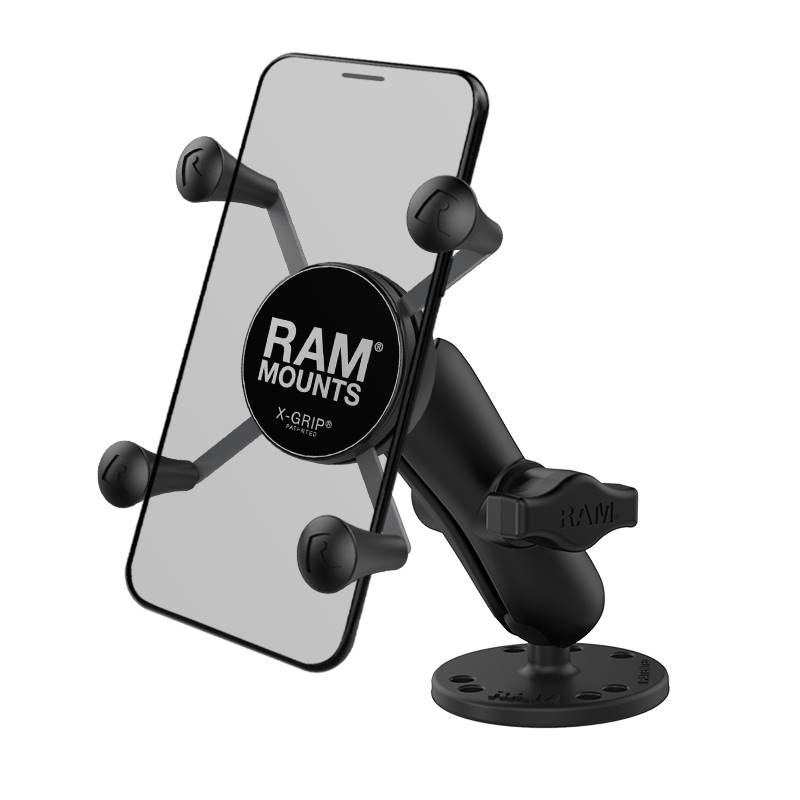

RAM X-Grip Phone Mount with Drill-Down B

The RAM-B-138-UN7U consists of a 2.5" diameter round base with the universal AMPS hole pattern,
double socket arm and universal spring loaded X-Grip cradle for cell phones. Designed into the
mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both
ends of the socket arm; this with a twist of the arm knob, allows you to move the mount to your
optimum viewing position. The included X-Grip cradle has a clean and clever four leg design that
sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded
X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The
perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell
phone cradle evolved.

HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION


FEATURES:
Spring-loaded 'X' design features rubber caps and sports great holding power; includes optional
device tether for peace of mind during rugged use

Includes drill-down 2.5" round base and medium length, B size RAM double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.74 lbs.
