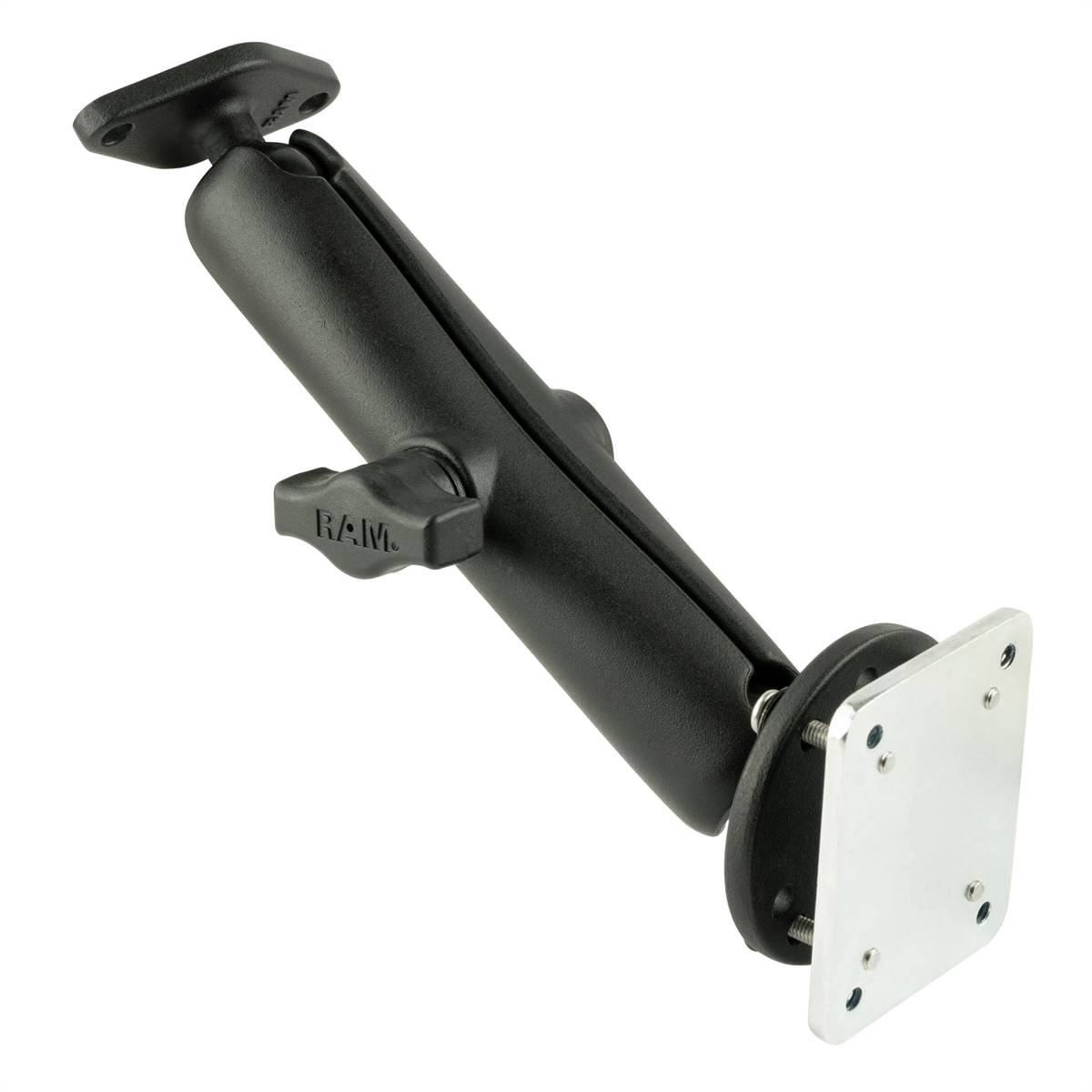

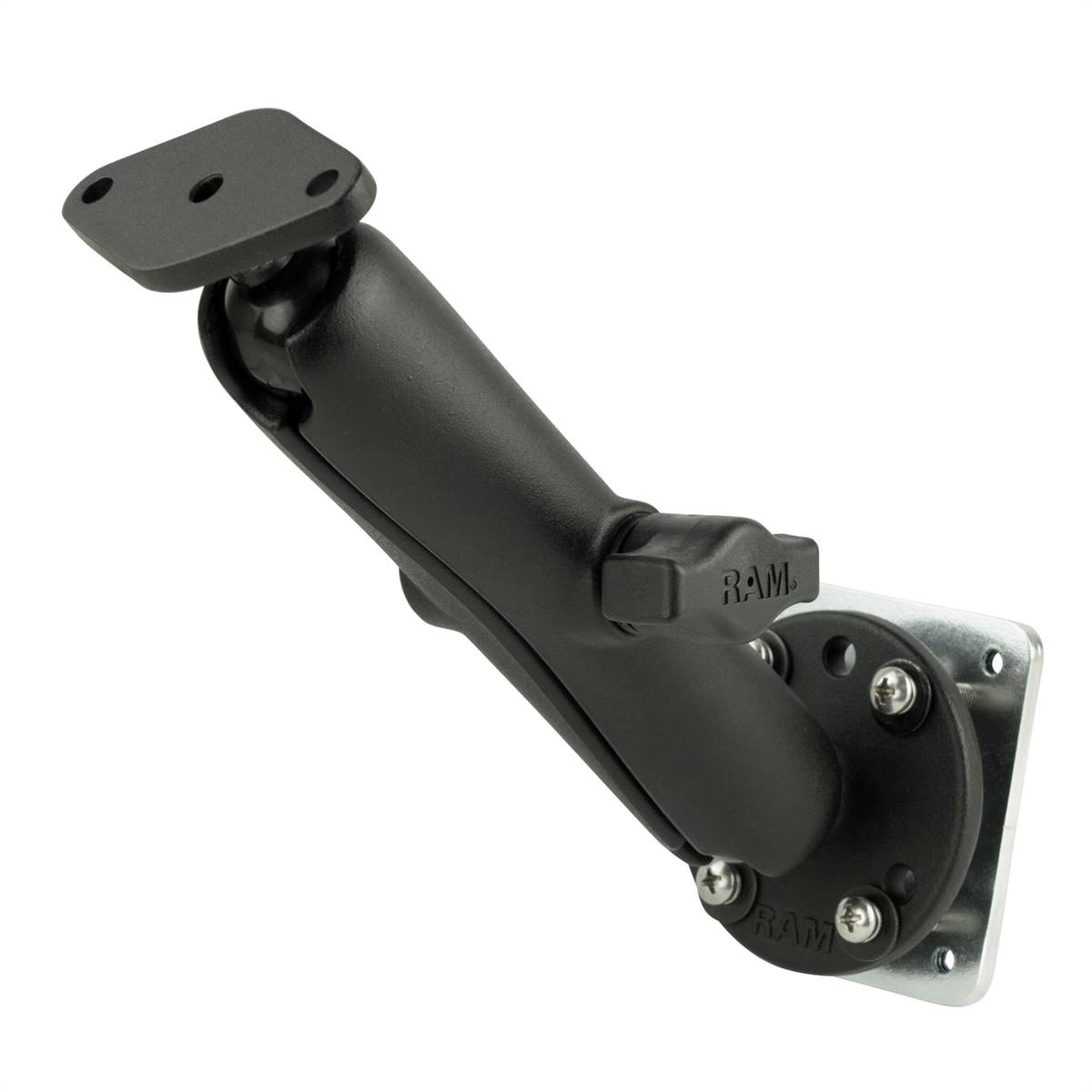

RAM Double Ball Drill-Down Mount with

The RAM-B-138U-C-INT3 consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, long double socket arm, diamond base adapter and backer plate. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

hardware included
(1) 2.10" x 2.60" Steel Backing Plate(4) #8-32 x 1" Screws(4) #8 Split Lock Washers(4) #8 Flat Washers

product dimensions
Overall Height: 7.3125"

socket to socket length
5.31"

hole pattern
Diamond Plate: 2-Hole AMPS: 1.912"Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

ball size
B Size (1")

weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lb

materials
SteelMarine-grade aluminum

packaging type
Poly Bag

Weight
1.04 lb
