RAM Double Ball Drill-Down Mount with Diam

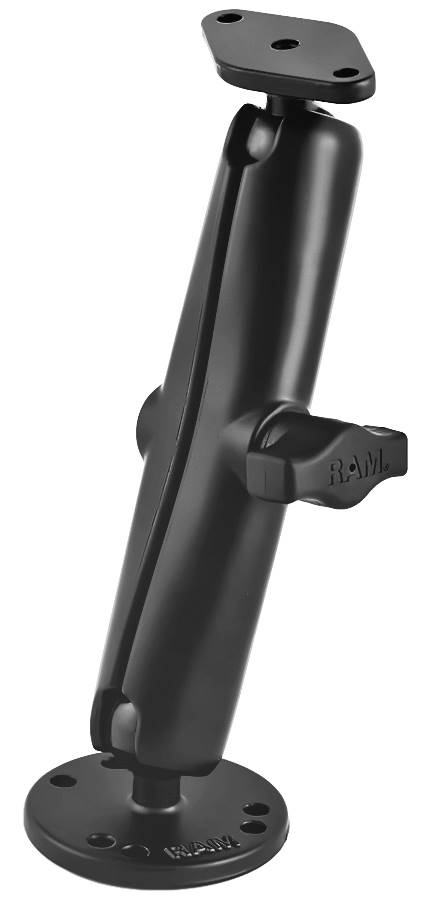

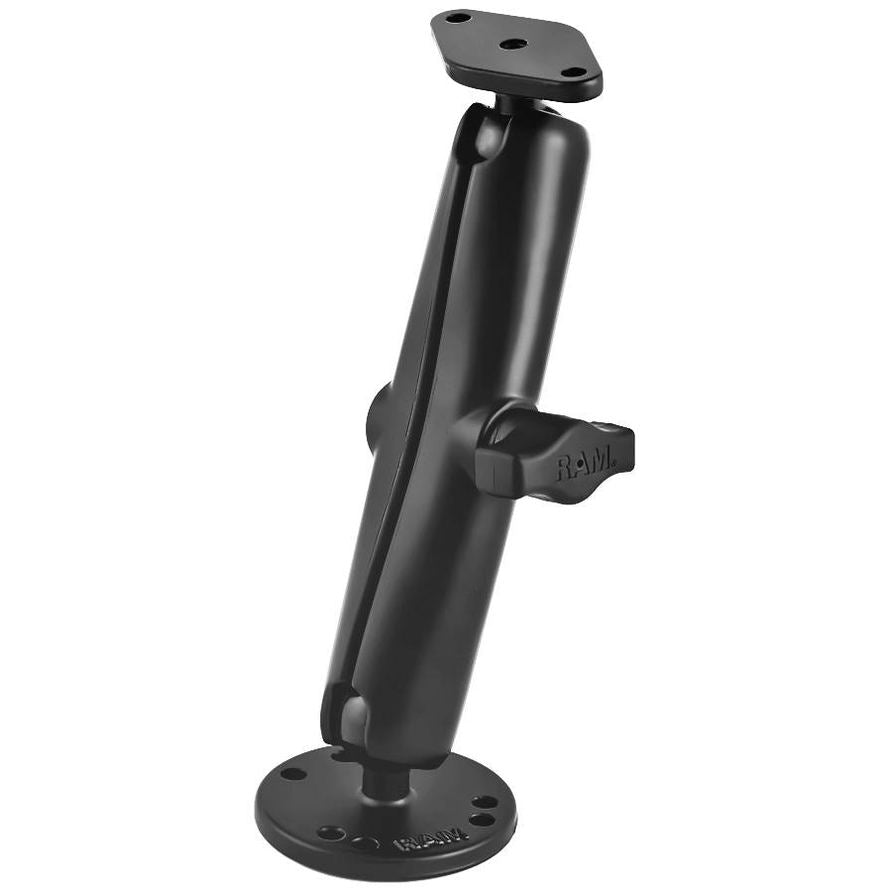

The RAM-B-138U-C consists of a 2.5" diameter round base that contains the universal AMPs hole
pattern, LONG double socket arm and diamond base adapter. The mount is designed with a 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found
on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design
dampens shock and vibration, helping to extend the life of your device.

PRODUCT DIMENSIONS
Overall Height: 7.3125"

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
Diamond Plate: 2-Hole AMPS: 1.912"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
Round Plate: 2.5" Diameter
Diamond Plate: 2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.73 lbs.
