RAM Double Ball Drill-Down Mount with Diamon

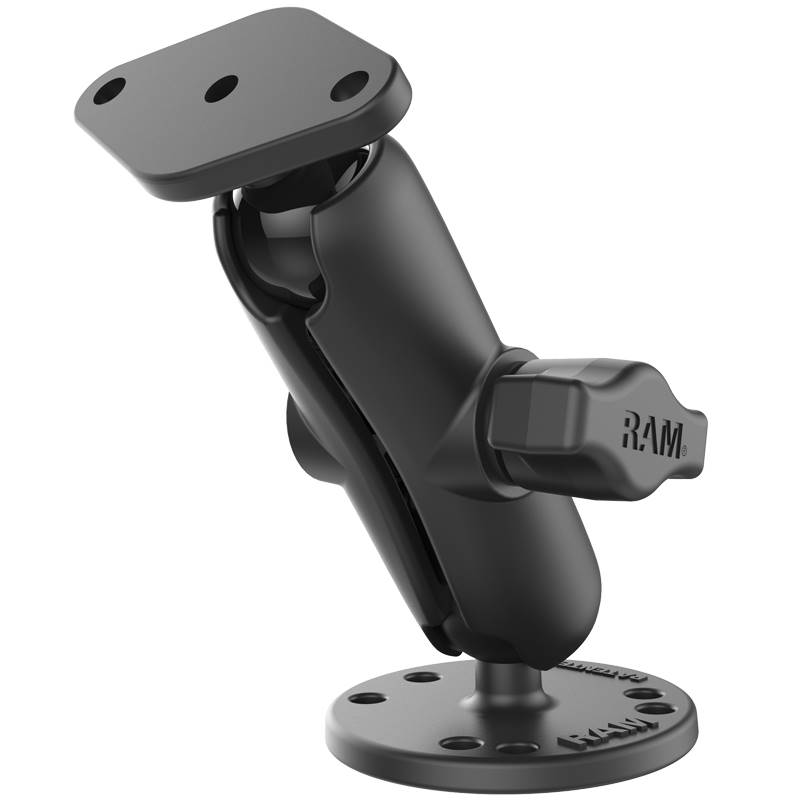

The RAM-B-138U consists of a medium length B size 1" double socket arm, one 2.5" diameter round ball
base, and one diamond ball base (both bases feature the universal AMPS hole pattern). The ball and
socket system provides shock and vibration damping, and allows for near-infinite adjustability to
achieve an ideal viewing and operating angle of your device.

PRODUCT DIMENSIONS
Overall Height: 5"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
Round Plate: 2.5" Diameter
Diamond Plate: 2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Drill-down mounting solution; diamond plate features AMPS hole pattern for attachment to compatible
device holders

Includes round ball base, diamond ball base, and B size medium length double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding
marine environments

Backed by a lifetime warranty


WEIGHT
0.5 lbs.
