RAM Drill-Down Double Ball Mount with Rect
RAM Drill-Down Double Ball Mount with Rect
Regular price
$31.49 USD
Regular price
Sale price
$31.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442949616
Mfg Part #:
RAM-B-139U-A
Availability:
In Stock
Part Number:
RAM-B-139U-A
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

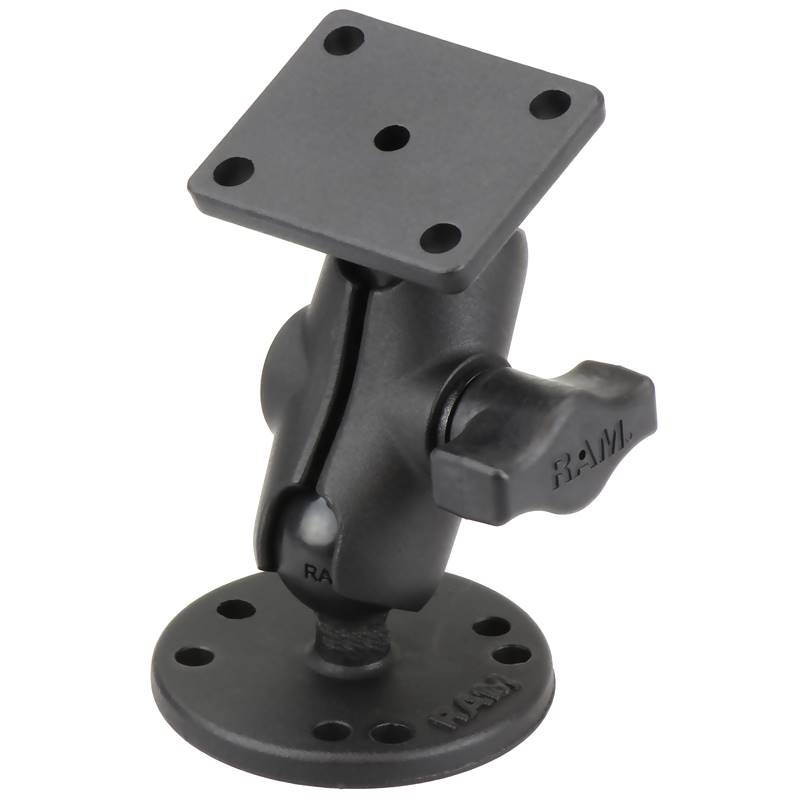

The RAM-B-139U-A consists of a SHORT double socket arm, one 2.5" round plate and one 2" X 1.7" plate
that contains the universal AMPS hole pattern. The mount is designed with a 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The AMPS hole pattern on each
plate will connect to many RAM cradles, including all iPad cradles. The included RAM’s patented
design dampens shock and vibration, helping to extend the life of your device.
PRODUCT DIMENSIONS
Overall Height: 3.75"
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 4-Hole AMPS: 1.181" x 1.496"
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.44 lbs.
that contains the universal AMPS hole pattern. The mount is designed with a 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The AMPS hole pattern on each
plate will connect to many RAM cradles, including all iPad cradles. The included RAM’s patented
design dampens shock and vibration, helping to extend the life of your device.
PRODUCT DIMENSIONS
Overall Height: 3.75"
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 4-Hole AMPS: 1.181" x 1.496"
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.44 lbs.
Dimensions:
- Overall Height: 3.75"
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.44 lbs.
