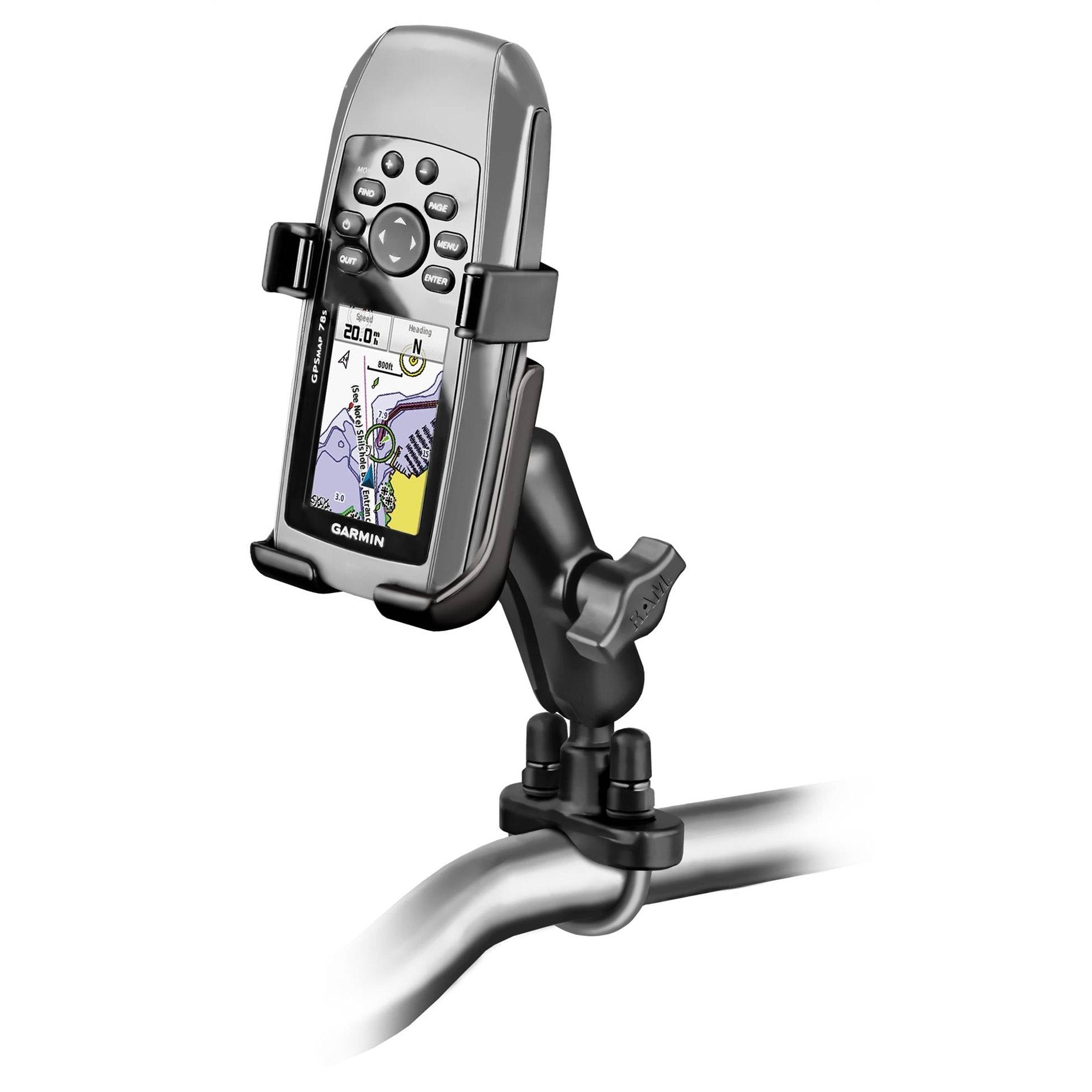

RAM U-Bolt Mount for Garmin GPSMAP 73,

The RAM-B-149-GA40U consists of a double socket arm, stainless steel u-bolt base, diamond adapter
base and custom high strength composite cradle for the Garmin GPSMAP 78 series. Designed into the
mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and
cradle. With a twist of the arm knob, you can move the motorcycle GPSMAP mount to your optimum
viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1"
in diameter.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.54 lbs.
