RAM ATV/UTV Handlebar U-Bolt Mount w

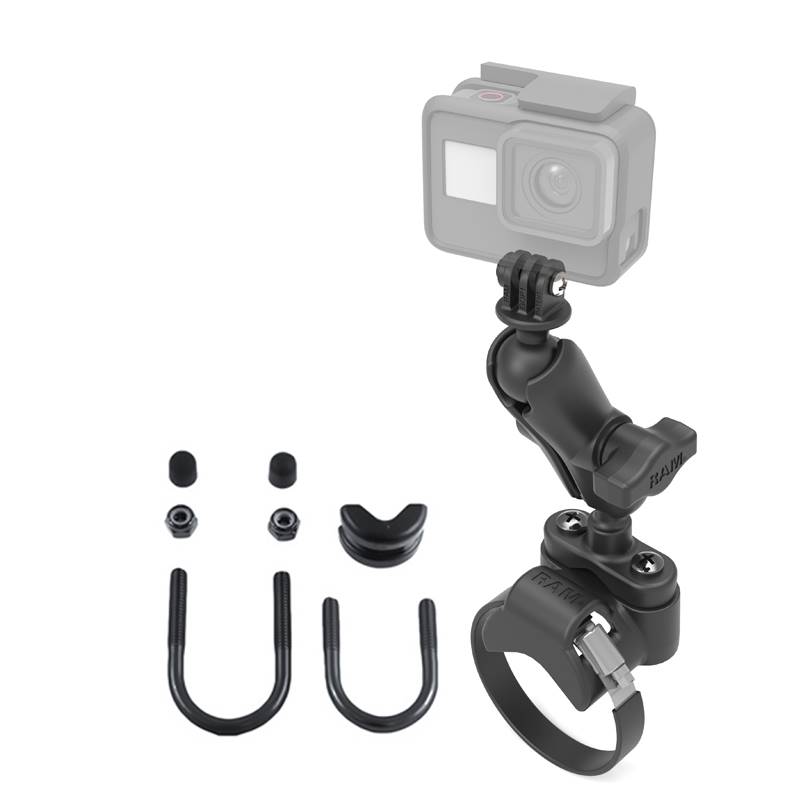

The RAM-B-149Z-2-GOP1U consists of a steel strap base, u-bolt bases, double socket arm and 1"
diameter ball with custom GoPro Hero adapter. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. Designed for a clean
installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the
placement of the RAM rubber ball base. This mount can also be attached to smaller diameter
handlebars on ATVs using the included hardware. The GoPro Hero adapter attaches directly to the
under-side of the camera, replacing the factory mounting bracket.

HARDWARE INCLUDED
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.8 lbs.
