RAM ATV/UTV Double Ball Rail Mount w

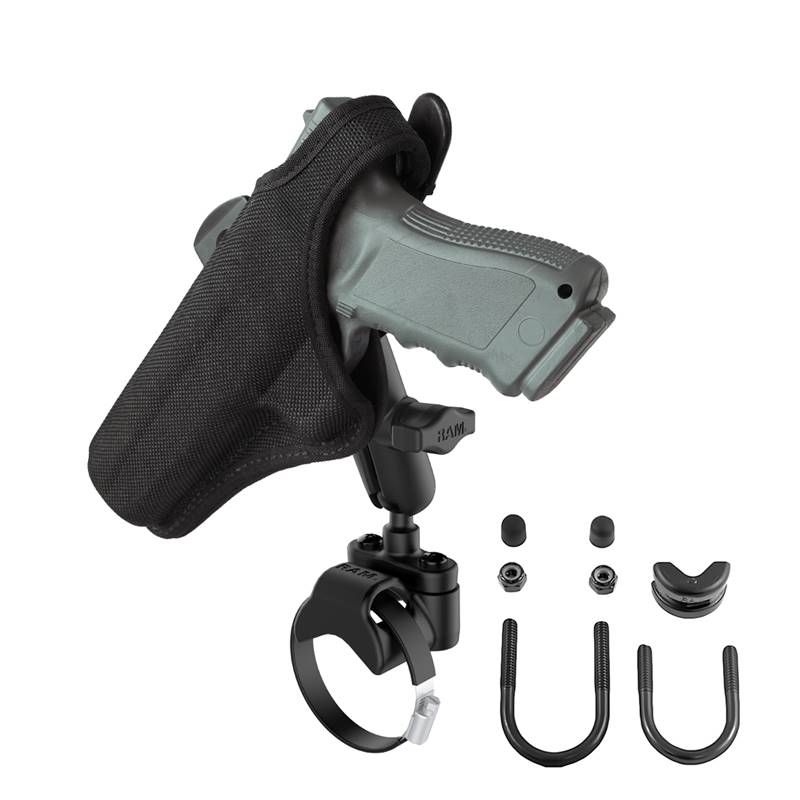

The RAM-B-149Z-2-GUN1U consists of a steel strap base, u-bolt bases, double socket arm and gun
holster clip. Designed into the mount is a 1" diameter patented rubber ball and socket system with
adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move
the gun holster clip to your optimum viewing position. Designed for a clean installation, the RAM
strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the
RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using
the included hardware.

HARDWARE INCLUDED
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.0 lbs.
