RAM Finger-Grip Universal Mount with A
RAM Finger-Grip Universal Mount with A
Regular price
$88.99 USD
Regular price
Sale price
$88.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442905612
Mfg Part #:
RAM-B-149Z-2-UN4
Availability:
In Stock
Part Number:
RAM-B-149Z-2-UN4
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

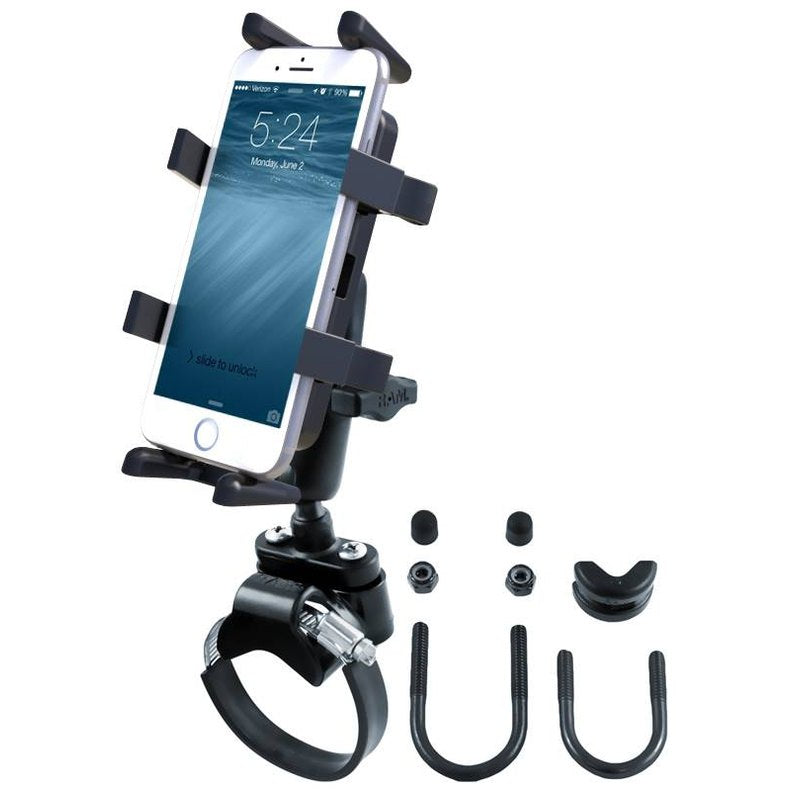

The RAM-B-149Z-2-UN4 consists of a steel strap base, u-bolt bases, double socket arm and universal
Finger Grip cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles. Designed for a clean installation, the RAM strap
mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball
base. This mount can also be attached to smaller diameter handlebars on ATVs using the included
hardware.
HARDWARE INCLUDED
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Retail Bag
WEIGHT
1.41 lbs.
Finger Grip cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles. Designed for a clean installation, the RAM strap
mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball
base. This mount can also be attached to smaller diameter handlebars on ATVs using the included
hardware.
HARDWARE INCLUDED
Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Retail Bag
WEIGHT
1.41 lbs.
Dimensions:
- Minimum with Top and Bottom Supports: 5.25"
- Maximum with Top and Bottom Supports: 7.25"
- The top and bottom plates can be removed for larger devices.
Rail Accommodation Dimensions:
- Mount with Strap: 1.57" to a maximum of 3.15
- Mount with U-Bolt: 0.50" to a maximum of 1.25"
Dimensions using Short Arm Clamps:
- Maximum Depth: 0.75"
- Minimum Width: 1.25"
- Maximum Width: 3.0"
Dimensions using Medium Arm Clamps:
- Maximum Depth: 1.25"
- Minimum Width: 1.5"
- Maximum Width: 3.5"
Dimensions using Long Arm Clamps:
- Maximum Depth: 1.6"
- Minimum Width: 2.25"
- Maximum Width: 3.5"
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Plate Dimensions:3" Width x 3" Height
- Note:Part number reflects product packaged in clear clam shell for store shelf display.
- Weight:1.41 lbs.
