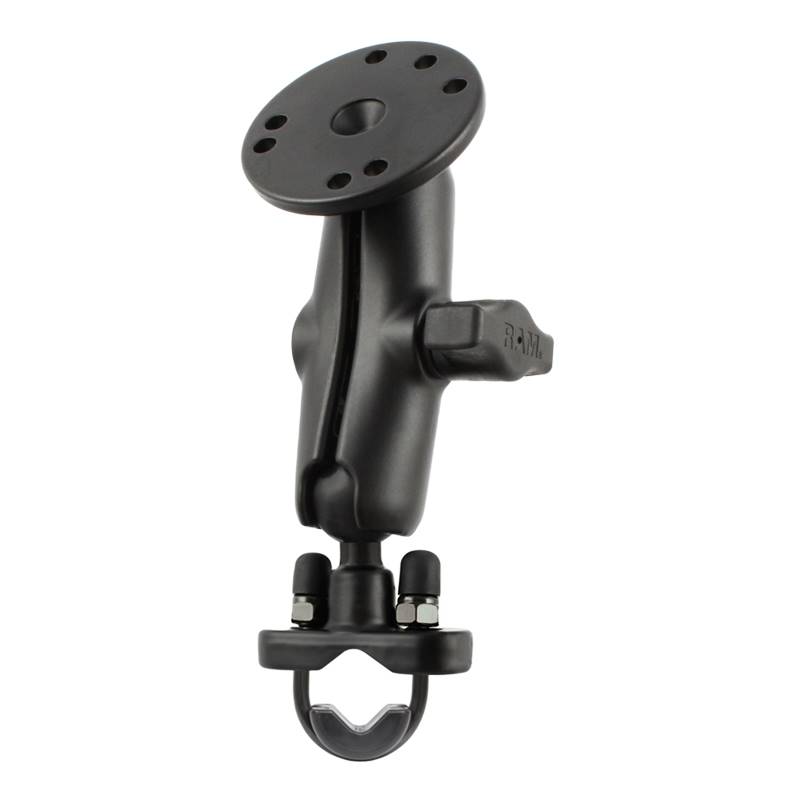

RAM Handlebar U-Bolt Double Ball Mount

The RAM-B-149Z-202U consists of a zinc coated u-bolt base, double socket arm and round base adapter.
The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and
will connect to a large variety of RAM Mount and third party cradles. Included in this package is
hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can
narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
2.5" round plate connects to RAM device holders containing the universal AMPS hole pattern

Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B
size RAM double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.65 lbs.
