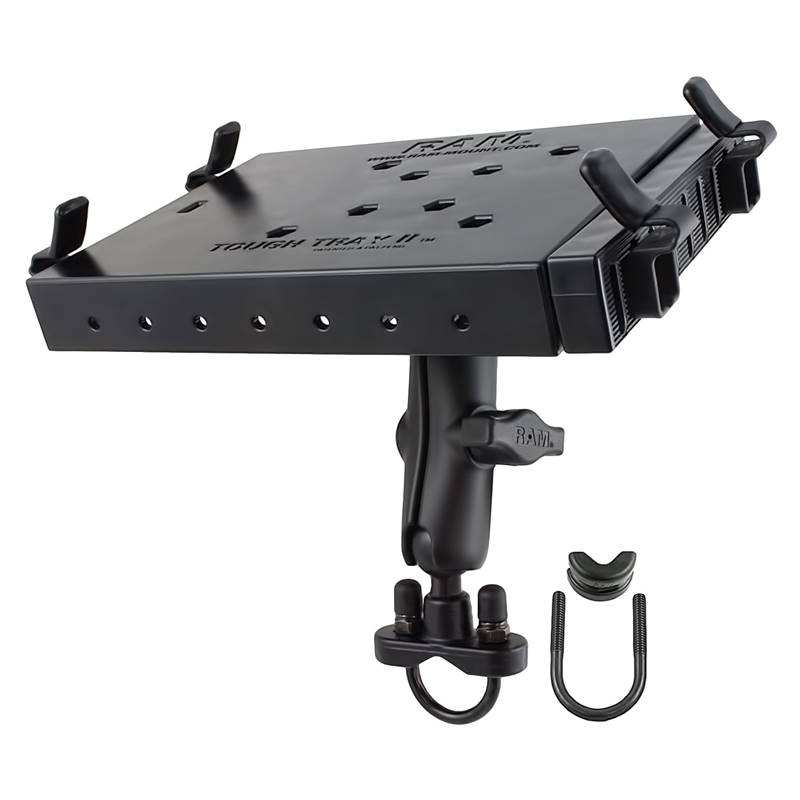

RAM Tough-Tray Tablet Mount with U-Bo
RAM Tough-Tray Tablet Mount with U-Bo
Regular price
$97.49 USD
Regular price
Sale price
$97.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442939945
Mfg Part #:
RAM-B-149Z-234-6U
Availability:
In Stock
Part Number:
RAM-B-149Z-234-6U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
TRAY DIMENSIONS
Width Range: 8.56" - 11.2"
Side Arm Clamp Height: 2.75" max
Tray Depth: 6"
Tray Thickness: 1"
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
TRAY DIMENSIONS
Width Range: 8.56" - 11.2"
Side Arm Clamp Height: 2.75" max
Tray Depth: 6"
Tray Thickness: 1"
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.51 lbs.
U-Bolt Dimensions:
- Accommodates rails from 0.5" to 1.25" in diameter
- Material:High Strength Composite and Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.51 lbs.
