RAM-B-149Z-237U_RAM U-Bolt Double Ball Mount with 1/4"-

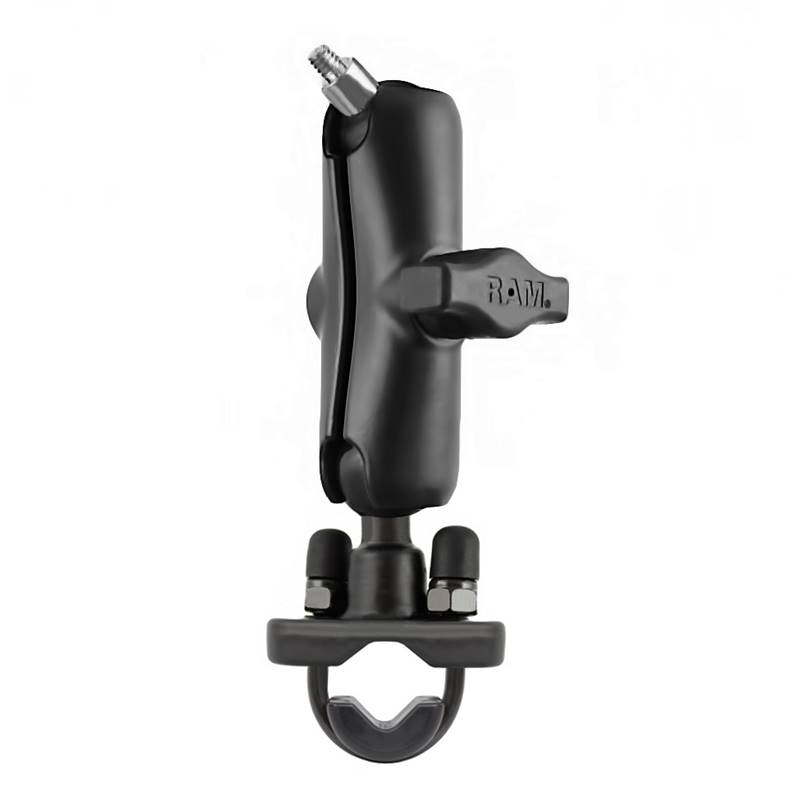

The RAM-B-149Z-237U consists of a zinc coated u-bolt base, double socket arm and 1" diameter rubber
ball, connected to a 1/4"-20 camera thread. Designed into the mount is a 1" diameter patented rubber
ball and socket system with adjustment points at both ends of the socket arm; this with a twist of
the arm knob, allows for infinite articulation and optimum viewing angles. The male thread matches
most standard camera and camcorder female threads found on the bottom of the camera. Included in
this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included
are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that
can narrow the rail to a minimum width of 0.5".

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.5 lbs.
