RAM ATV/UTV Double Ball Rail Mount

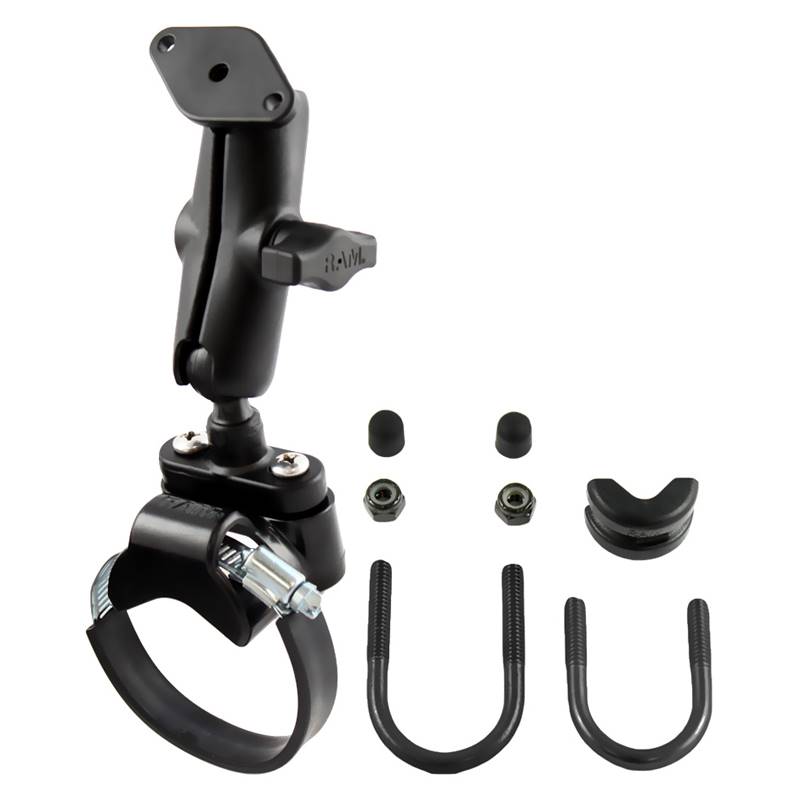

The RAM-B-149Z-2U consists of a steel strap base, u-bolt bases, double socket arm and diamond
adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS
hole pattern and will connect to a large variety of RAM Mount and third party cradles. Designed for
a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s,
allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller
diameter handlebars on ATVs using the included hardware. With the ball base in place, you have the
foundation for mounting everything from GPS Devices, RAM Aqua Boxes, Spotlights and Radios.

HARDWARE INCLUDED
(1) M5-.8 x 25mm Machine Screw
(1) M5-.8 x 18mm Machine Screw
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

PLATE SIZE
2.43" x 1.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
1.3 lbs.
