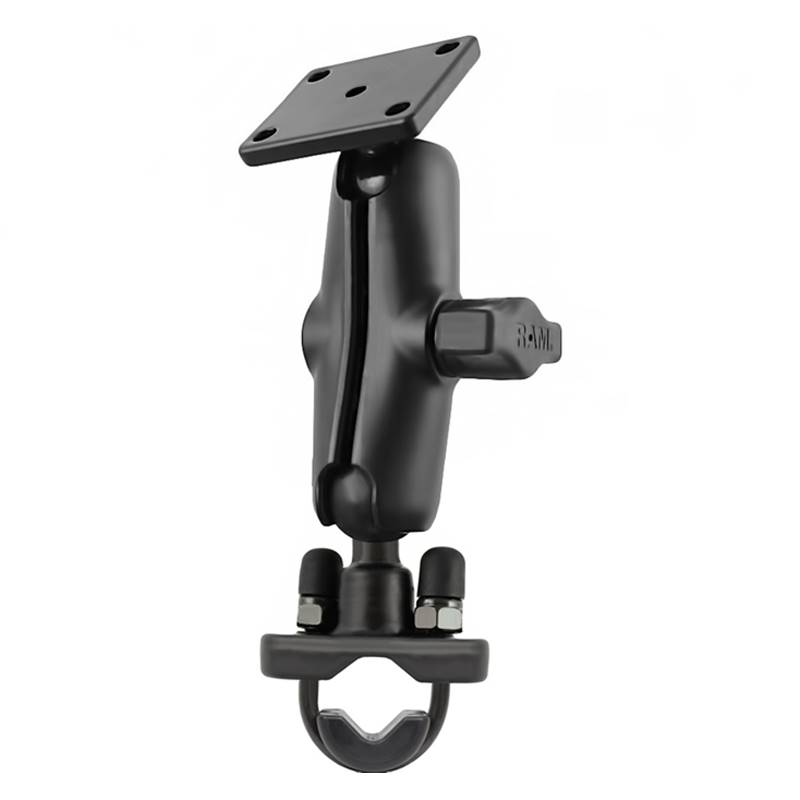

RAM Handlebar U-Bolt Double Ball Mount

The RAM-B-149Z-347U consists of a zinc coated u-bolt base, double socket arm and square adapter base
that contains the universal AMPs hole pattern. Included in this package is hardware that will
accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed
over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a
minimum width of 0.5". The square adapter base contains four pre-drilled holes at each corner,
making the universal 1.5 x 1.188 (hole spacing) AMPS hole pattern. he mount is designed with a RAM
1" diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.51 lbs.
