RAM Handlebar U-Bolt Double Ball Mou

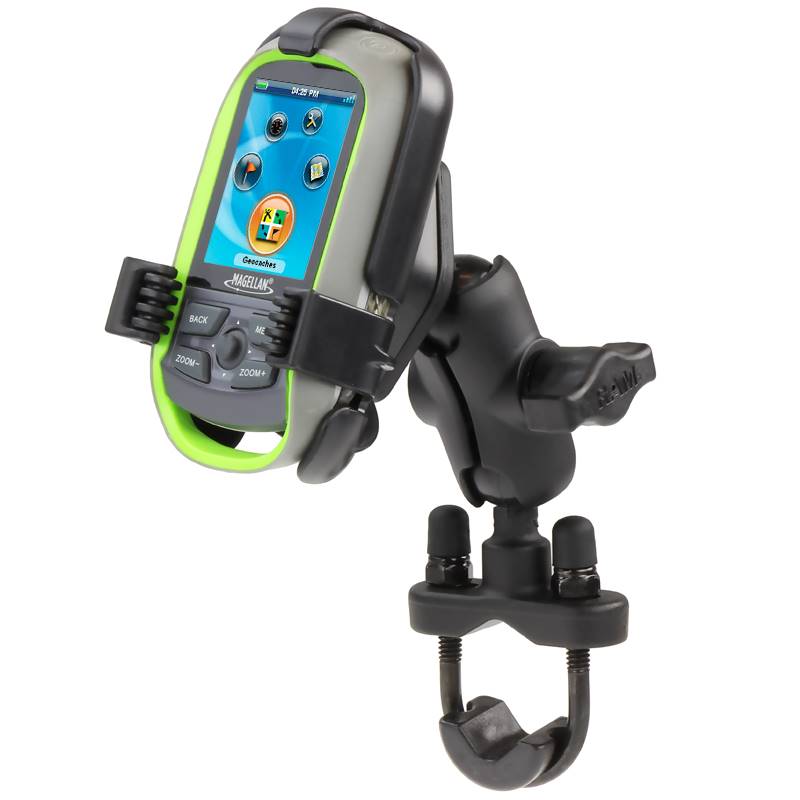

The RAM-B-149Z-A-MA15U consists of a zinc coated u-bolt base, SHORT size double socket arm and 1"
diameter ball with a form-fit cradle for the Magellan eXplorist GC/110/310/350H series. The mount is
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in
diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The
included composite rail adapter can narrow the rail to a minimum width of 0.5". Compatible with:
Magellan eXplorist GC, Magellan eXplorist 110, Magellan eXplorist 310, and Magellan eXplorist 350H.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
1.75"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.83 lbs.
