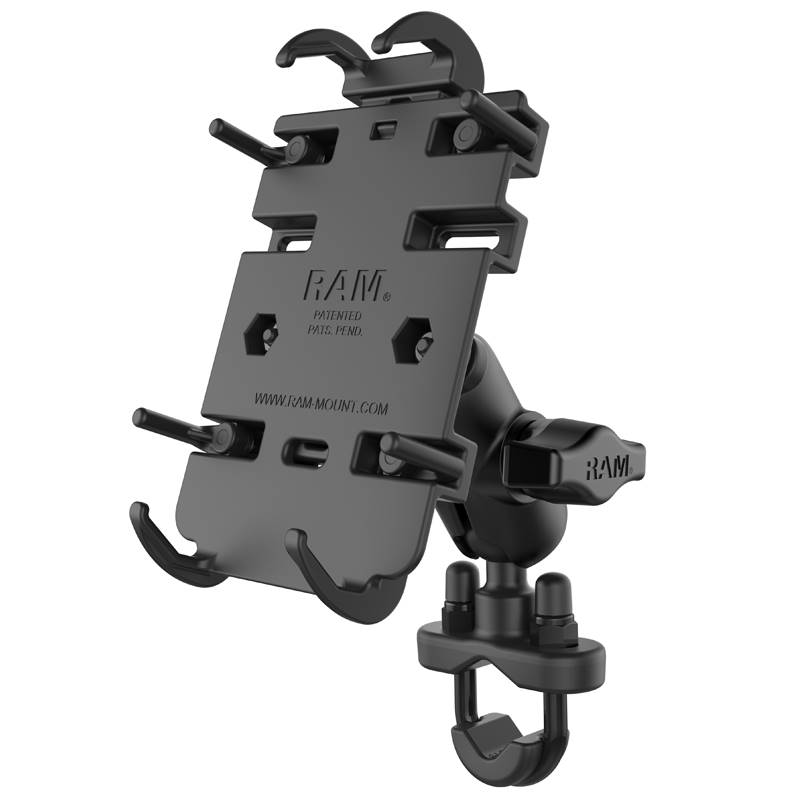

RAM Quick-Grip Phone Mount with Handl

This version of the spring-loaded RAM Quick-Grip holder provides a secure fit for a variety of
regular size phones and other devices. The adjustable side keepers ensure that devices like GPS
units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder.
Included is a short RAM double socket arm and zinc-coated handlebar U-Bolt base that accommodates
rails from .5” to 1.25” in diameter.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS
Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
1.75"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of
phones and other devices; easily insert and remove your phone with one hand

Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B
size RAM double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty
