RAM X-Grip Large Phone Mount with Ha

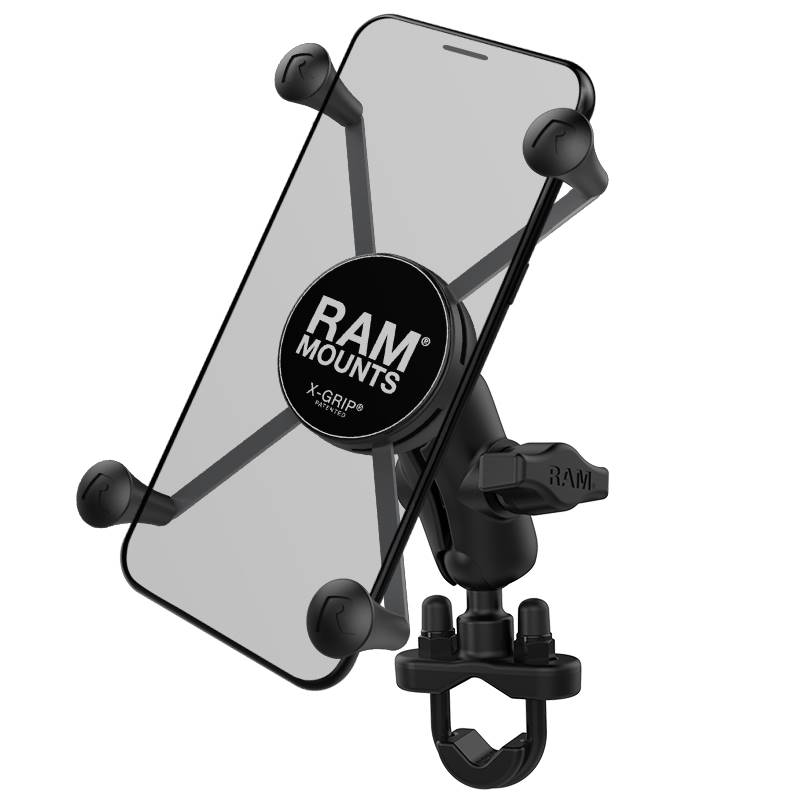

The RAM-B-149Z-A-UN10U consists of a zinc coated u-bolt base, short double socket arm and universal
spring loaded X-Grip IV cradle for large phones and phablets. Included in this package is hardware
that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to
be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the
rail to a minimum width of 0.5". The mount is designed with a RAM B size 1" diameter patented rubber
ball and socket system that has adjustment points at both ends of the double socket arm; allowing
for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip IV cradle
expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip
includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS
Width Range: 1.75" - 4.5"
Depth Range: .875" max

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
1.75"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION


FEATURES:
Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding
your phone; includes optional device tether for peace of mind during rugged use

Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length B size
RAM double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
0.75 lbs.
