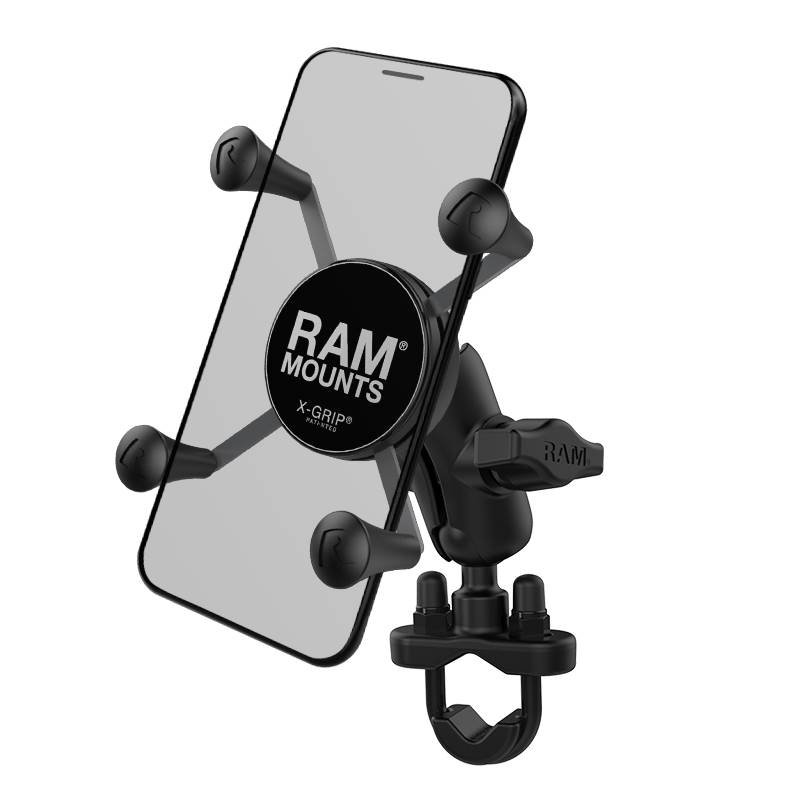

Ideal for handlebars, the RAM-B-149Z-UN7U consists of a zinc-coated U-bolt base, medium length
double socket arm, and the popular spring-loaded RAM X-Grip phone holder. In addition, hardware is
included to accommodate rails from .5" to 1.25" in diameter. The RAM X-Grip features an 'X' design
that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made
of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite,
this version of the RAM X-Grip fits phones ranging from 1.87" to 3.25" in width and keeps your
device completely functional and accessible. RAM ball and socket technology allows for near-
infinite adjustability to achieve the ideal viewing angle – while also extending the life of your
phone by providing shock and vibration damping. For outdoor applications, the RAM X-Grip includes
a device tether that is recommended for added security and peace of mind.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
FEATURES:
Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone;
includes optional device tether for peace of mind during rugged use
Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length B size
RAM double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
WEIGHT
0.68 lbs.
double socket arm, and the popular spring-loaded RAM X-Grip phone holder. In addition, hardware is
included to accommodate rails from .5" to 1.25" in diameter. The RAM X-Grip features an 'X' design
that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made
of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite,
this version of the RAM X-Grip fits phones ranging from 1.87" to 3.25" in width and keeps your
device completely functional and accessible. RAM ball and socket technology allows for near-
infinite adjustability to achieve the ideal viewing angle – while also extending the life of your
phone by providing shock and vibration damping. For outdoor applications, the RAM X-Grip includes
a device tether that is recommended for added security and peace of mind.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
FEATURES:
Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone;
includes optional device tether for peace of mind during rugged use
Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length B size
RAM double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
WEIGHT
0.68 lbs.
Purchase Includes:
- (QTY. 1), Optional Tether Included
U-Bolt Dimensions:
- Accommodates rails from 0.5" to 1.25" in diameter
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components and High Strength Composite
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
- Weight:0.68 lbs.
